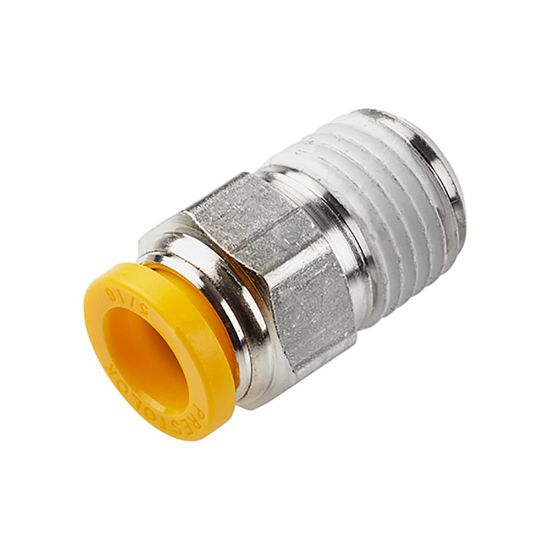

W68PLP-4M-4R - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	6 in stock

SKU W68PLP-4M-4R

$6.11/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	1/4"
Product Style	Connector	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 1 Size	4 mm
Connection 2 Type	Male BSPT	Maximum Operating Temperature	93.3 °C
Maximum Operating Pressure	20.6 bar	Region of Origin	United States
For Fluid Type	Inert Gases	Hex Size	9/16 inch
Specifications Met	UL 94 V-0	Minimum Operating Temperature	-17.7 °C
Vacuum Pressure Rating	28 Inch-Hg	Seal Material	Nitrile
Industry	Automotive	Body Material	Brass, Nickel-plated
Tube Material	Rigid Nylon	Gripping Ring Material	Stainless Steel
Materials of Construction	PVDF (Button)
