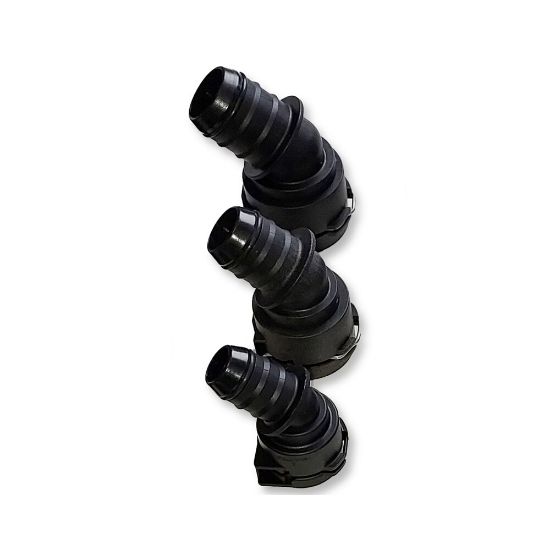

FVDA121445 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU FVDA121445

$9.34/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	FVDA
Connection 1 Hose Inside Diameter	0.472" (I.D.)	Length (inch)	2.01"
Shape	Elbow 45°	Length	2.01
Connection Type	Push-to-Connect	Connection 1 Size	0.472 inch Hose I.D.
Configuration	Hose to VDA	Size	-14
Maximum Operating Pressure	125	Shape	Elbow 45°
Maximum Operating Temperature	212	Industry	Transportation
Seal Material	EPDM (O-Ring)	Product Style	VDA
Minimum Operating Temperature	-40	Materials of Construction	High Performance Glass Filled Polyamide
Connection Size	n/a	Notes	Socket Size: 0.472" / 12 mm
Vacuum Pressure Rating	n/a	Fitting Type	Barb / Beaded Barb / Mini Barb
For Fluid Type	Coolants (Water Based)
