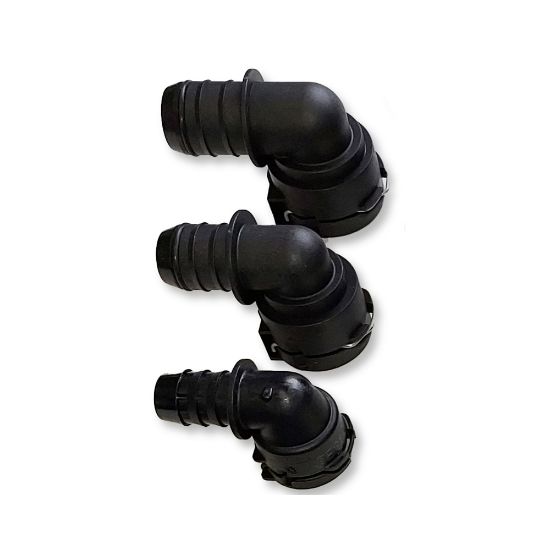

Picture of Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - FVDA121490

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - FVDA121490

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)
Availability:
Backordered
SKU FVDA121490
$9.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Hose Inside Diameter0.472" (I.D.)
Length (inch)1.22"ShapeElbow 90°
Product StyleFVDAShapeElbow 90°
Fitting TypeBarb / Beaded Barb / Mini BarbMaximum Operating Temperature212
Vacuum Pressure Ratingn/aFor Fluid TypeCoolants (Water Based)
Product SeriesECHIndustryTransportation
DivisionParflex DivisionSeal MaterialEPDM (O-Ring)
Materials of ConstructionHigh Performance Glass Filled PolyamideProduct StyleVDA
NotesSocket Size: 0.472" / 12 mmProduct TypeHose Fitting
Connection 1 Size0.472 inch Hose I.D.BrandPARKER
Length1.22Connection Sizen/a
ApplicationFluid TransferConnection TypePush-to-Connect
Maximum Operating Pressure125Minimum Operating Temperature-40
ConfigurationHose to VDADivisionParflex Division
Size-14
