*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

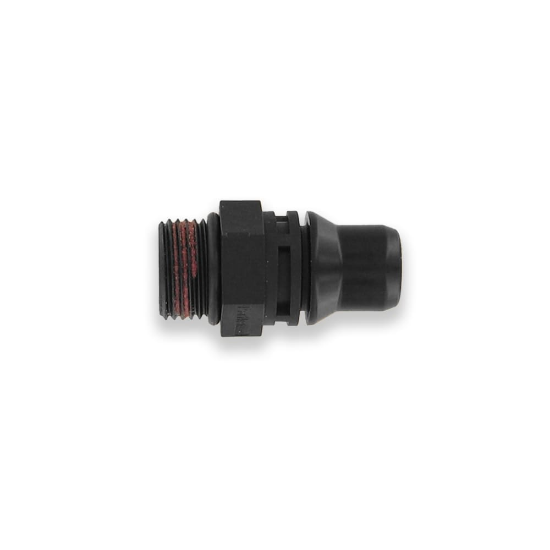

MVDA1205-08 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU MVDA1205-08

$9.91/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	1.75"	Connection 1 Hose Inside Diameter	0.472" (I.D.)
Product Style	MVDA Adapter	Minimum Operating Temperature	-40
Shape	Straight	Industry	Transportation
Maximum Operating Temperature	212	Fitting Type	Port Adapter
Connection 2 Type	Male SAE-ORB	Connection 2 Thread Size	3/4-16
Maximum Operating Pressure	125	Connection 2 Size	1/2
Connection Size	-8	Vacuum Pressure Rating	n/a
Seal Material	EPDM (O-Ring)	Product Style	VDA
For Fluid Type	Coolants (Water Based)	Connection 1 Size	0.472 inch Hose I.D.
Materials of Construction	High Performance Glass Filled Polyamide	Size	12
Configuration	Port Adapter	Connection Type	Male VDA to SAE-ORB
Length	1.75	Connection 1 Type	Male VDA

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
