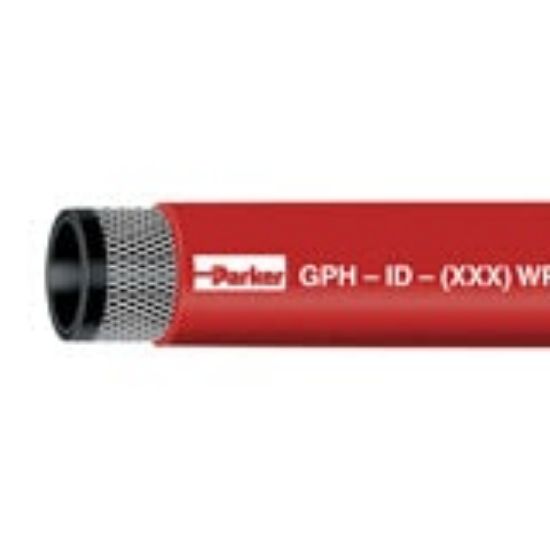

GPH-10RED250 - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU GPH-10RED250

$5.45/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	5/8	Maximum Working Pressure (psi)	300
Maximum Operating Temperature	150 °F	Maximum Operating Pressure	300 psi
Package Type	Coil	Minimum Operating Temperature	-15 °F
Cover Color	Red	Cover Material	PVC
Cover Structure	Smooth	Hose Reinforcement Material	2 Plies of Textile
Weight	0.10 kg	Inside Diameter	5/8 inch
Compatible Fitting	HY Series	Length per Package	250 ft
Vacuum Pressure Rating	10 Inch-Hg	Minimum Bend Radius	2.8 inch
Hose Inner Tube Material	Prime PVC	Outside Diameter	23.1 mm
Media	Lubricants (Oil Mist)

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
