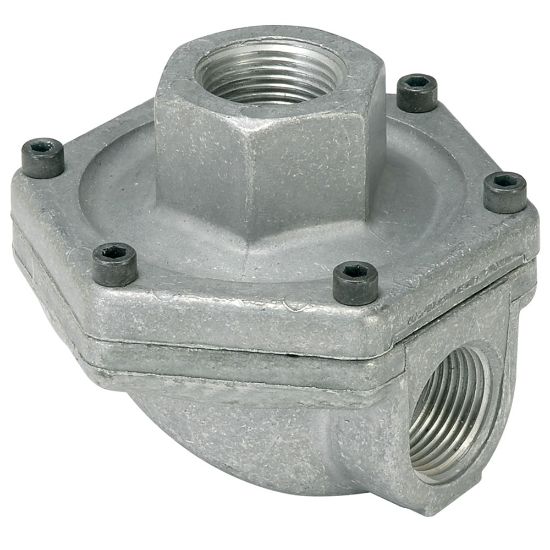

0R12B - Quick Exhaust Valves - 0R Series

0R quick exhaust valves provide rapid exhaust of cylinder exhaust and increase cylinder stroke speeds. Diaphragm materials are available in Urethane, Nitrile, Fluorocarbon, and PTFE to meet a wide variety of temperature and pressure operating conditions.

Availability:	Backordered Estimated Lead Time: 8 days
Partner Available:	22 in stock

SKU 0R12B

$56.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Port 3 Size (inch)	1/8
Operating Temperature (F)	0 - 180	Port Type	NPTF
Port 2 Size (inch)	1/8	Materials : Diaphragm	Standard - Urethane (Nitrile static seals)
Port 1 Size (inch)	1/8	Operating Pressure	3 to 200
Port Type	NPT	Body Material	Die Cast Aluminum
Port Connection	Female to Female	Seal Material	Urethane
Lubricant	None	Media	Air
Port Size	1/8	Flow Rate	150 to 550
Flow Coefficient	2.7 to 10.0	Mounting Type	Inline
