R06M35S4V

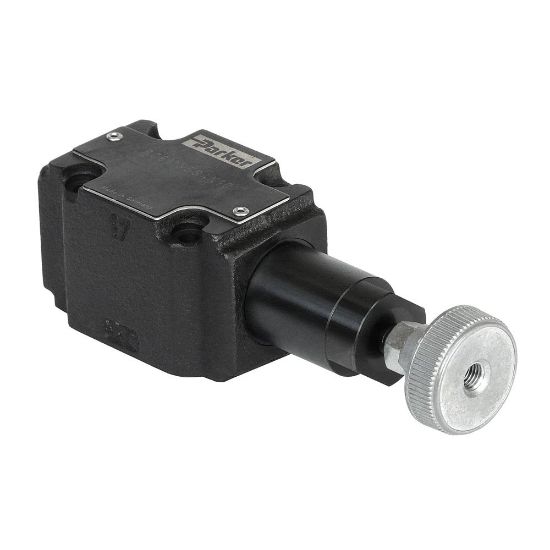

Parker R06M35S4V | Cartridge Valve | Seal Material FPM | Mounting Style Subplate Mounting | Pressure Adjustment Control Type Hand Knob

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU R06M35S4V

$1,556.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The proven pilot valves with pressure relief function series R06M and RS06M in NG06 contribute to a reliable operation and complete Parker's wide pilot control range for DIN cartridge valves. By this modular system, many pressure functions are documented. The R06M and RS06M represent two mounting options:

R06M for subplate mounting

RS06M for sandwich plate mounting

Features:

Compact, proven design that represents our long-term experience in hydraulics - increases reliability
Pressure range from 105 to 350 bar - enables fine adjustment
MTTFD value 150 years - ensures long service life
Short delivery time for most variations - no warehousing necessary
Flow rate maximum 5 l/min
Pressure adjustment via acorn nut with lead seal or cylinder lock (on request)

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	FPM
Parker Division	Hydraulic Cartridge System	Pressure Adjustment Control Type	Hand Knob
Parker Group	Hydraulic	Mounting Style	Subplate Mounting
Pressure Control Range	350 Bar
