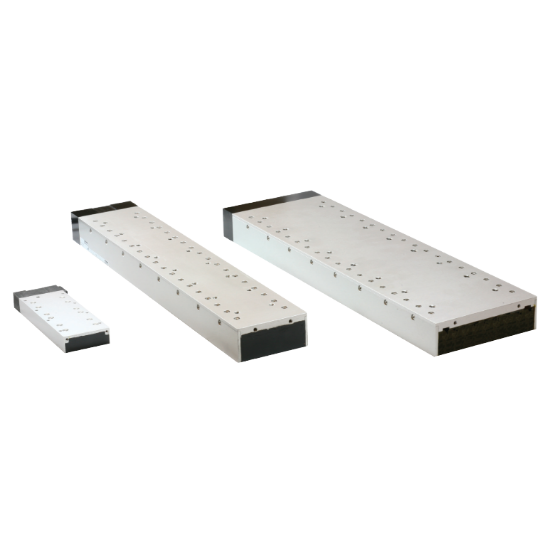

R7-3A-NC-MS

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU R7-3A-NC-MS

Products specifications

Attribute name	Attribute value
UOM	EA	Type	RIPPED Ironcore
Peak Current	21.0 RMS	Terminal Voltage	330 VDC
Back EMF	80.3 V/m/s	Inductance	18.3 mH
Electrical Time Constant	1.5 ms	Series	R10
Peak Force	761 N	Resistance	12 Ohm
Peak Power	10800 W	Number of Poles	3
Force Constant	15.6 lb/A peak	Continuous Force	462 N
Motor Constant	19.9 N/W	Continuous Power	540 W
Motor	Linear	Continuous Current	4.6 RMS
