RB2

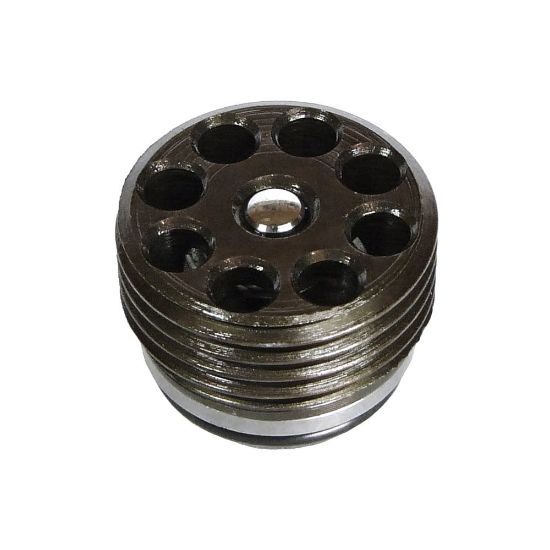

Parker's very robust check valves series RK and RB ensure a reliable operation even at high operating pressures (up to 700 bar). They are designed to be screwed into simple, threaded cavities. The connection is O-ring sealed on the 118° shoulder in the mounting cavity. The valve body is supplied as a unit, with a spring loaded, hardened and polished semisphere of stainless bearing steel inside. The seat is also hardened and ground.

Features:

• Proven, solid design - very good wear behaviour
• Zero leakage in closed position - ensures reliable operation
• Short delivery time - no warehousing necessary
• Two variations:

    - RK: mounted in the blocked direction

    - RB: mounted in open flow direction

Applications:

• Suitable for general hydraulic applications

Markets:
