RDM2PT06SVG

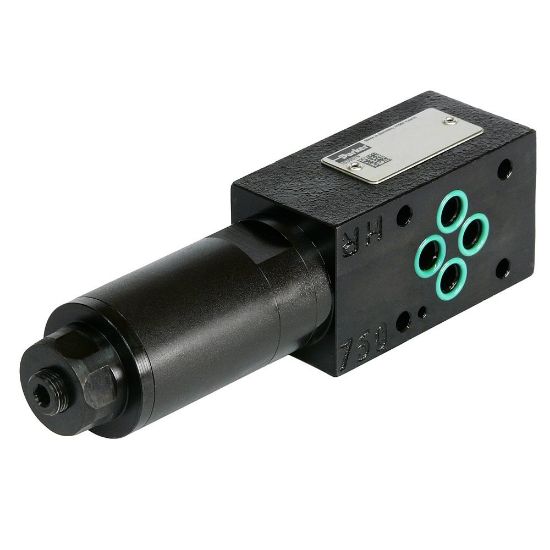

Parker RDM2PT06SVG | Relief Valve | Pressure Range Adjustment 1.5 to 64 Bar | Adjustment Mechanism Hexagon Socket | Gauge Port Connection G 1/4

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU RDM2PT06SVG

$968.80/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Parker's pressure relief valves series RDM in sandwich design enable an easy configuration of stack systems. The direct operated piston type valves provide low hysteresis and thus a precise pressure control. Series RDM can be used as P-T relief or as T-T controlled counter balance valve. The valve body is equipped with a pressure gauge port.

Features:

Proven direct operated, cushioned piston design - represents our long-term experience in hydraulics
Fast response, low leakage and minimal hysteresis - for improved process and product accuracy
5 pressure adjustment stages - permits an accurate adaption to the application
Short delivery time for most variations - no warehousing necessary
Max. pressure settings of:

- 25, 64, 160, 210, 350 bar for RDM2,

- 19, 50, 100, 150, 210 bar for RDM3.
Adjustment modes:

- Slotted head with lock nut

- Cylinder lock

- Turning knob
Gauge port
RDM2 - NG06 (CETOP 03), RDM3 - NG10 (CETOP 05)

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Nominal Size	NG06 / CETOP 03
Parker Division	Mobile Hydraulic System	Adjustment Type	Hexagon Socket
Pressure Relief Valve	P to T	Parker Group	Hydraulic
Pressure Range Adjustment	1.5 to 64 Bar	Gauge Port Connection	G 1/4
