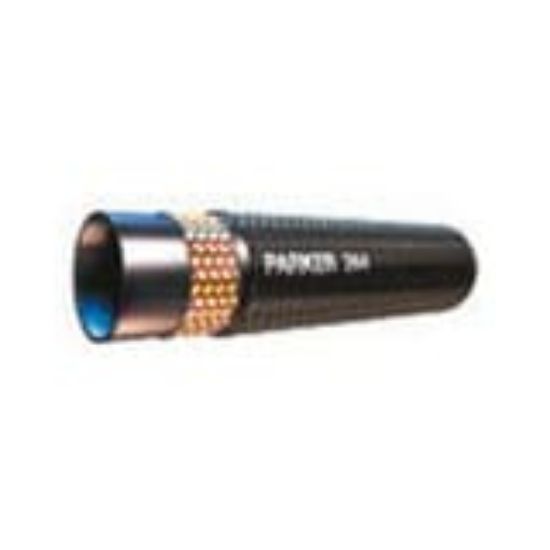

244-16 - Refrigerant/Air Conditioning Hose 350-500 PSI – 244 Hose

Parker's 244 hose is a refrigerant hose that has a pressure range of 350-500 PSI, designed for the rigorous requirements of bus and transit applications.

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	39 in stock

SKU 244-16

$33.83/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Maximum Operating Temperature	125 °C	Maximum Operating Pressure	500 psi
Hose Cover Type	Standard Cover	Hose Reinforcement Material	1 Braid of Steel Wire
Minimum Operating Temperature	-30 °C	Compatible Fitting	26 Series
Weight	0.76 kg/m	Inside Diameter	7/8 inch
Outside Diameter	31 mm	Nominal Hose Inside Diameter	22 mm
Minimum Bend Radius	190 mm	Media	Coolants
Specifications Met	SAE J2064, Type B Class I	Hose Inner Tube Material	Butyl Rubber

Product resources

Literature and Reference Materials
