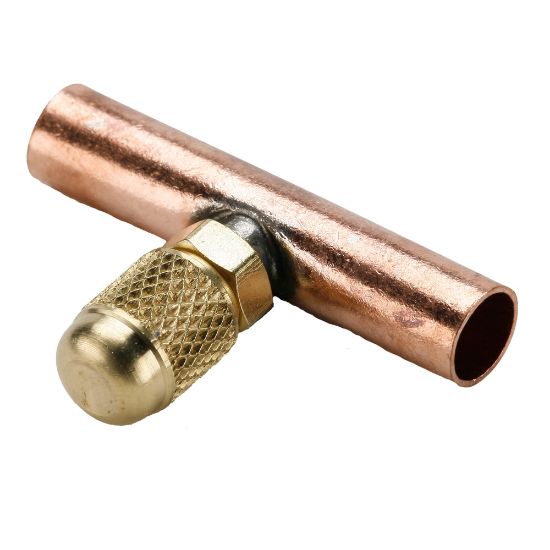

AVTS-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Backordered Estimated Lead Time: 47 days
Partner Available:	712 in stock

SKU AVTS-4

$20.29/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Connection 2 Style	Solder	Connection 1 Style	SAE Male Flare
Shape	Solder Tee	Style	Flare to Solder
Connection 2 Solder O.D. (inch)	3/8	Body Material	Brass
Maximum Operating Pressure	34 bar	Nut Material	Brass
Maximum Operating Temperature	220 °F	Specifications Met	Valve Core Meets ARI Standard 720
Minimum Operating Temperature	-28 °C	Media	Fluorocarbon Refrigerants
