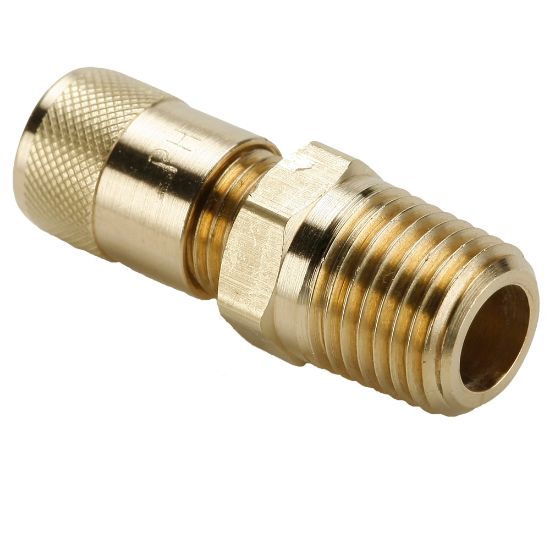

AVU1-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Backordered Estimated Lead Time: 56 days
Partner Available:	Backordered

SKU AVU1-4

$9.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Style	Male Pipe
Connection 1 Style	SAE Male Flare	Shape	Male Connector
Style	Flare to Male Pipe	Connection 2 Solder O.D. (inch)	5/16
Connection 2 Thread Size (inch)	14	Body Material	Brass
Maximum Operating Pressure	500 psi	Nut Material	Brass
Dimensional Weight	0.5518884892086331 lb	Maximum Operating Temperature	104 °C
Specifications Met	Valve Core Meets ARI Standard 720	Minimum Operating Temperature	-20 °F
Media	Fluorocarbon Refrigerants
