Refrigeration Access Valves - VC-001

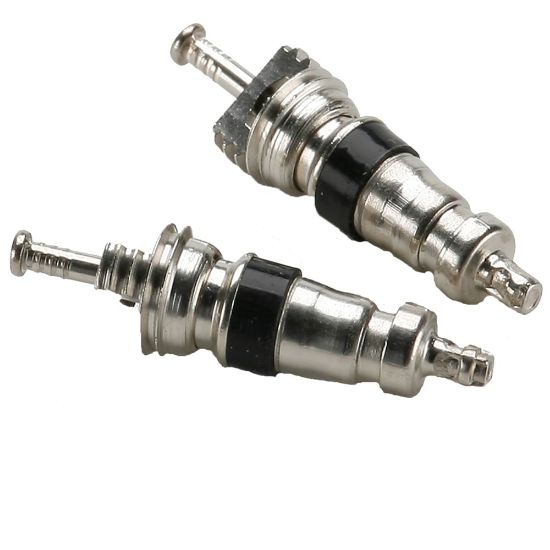

Name: Refrigeration Access Valves - VC-001
SKU: VC-001

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:

Backordered

SKU VC-001

$1.82

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Solder O.D. (inch)	na
Shape	Valve Core	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Thread Size (inch)	na	Style	na
Connection 2 Style	na	Connection 1 Style	SAE Male Flare
Connection 2 Tube O.D. (inch)	na	Specifications Met	Valve Core Meets ARI Standard 720
Nut Material	Brass	Minimum Operating Temperature	-20 °F
Body Material	Brass	Maximum Operating Temperature	220 °F
Division	Fluid System Connectors Division	Media	Fluorocarbon Refrigerants
Maximum Operating Pressure	34 bar
