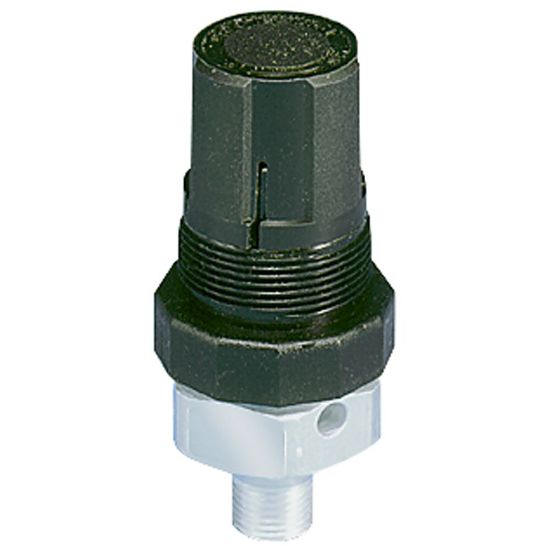

Picture of Relief Valves - 130 Series - 130-02AAP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Relief Valves - 130 Series - 130-02AAP

130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.
Availability:
Backordered
SKU 130-02AAP
$62.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAAvailable AccessoriesWith panel mount nut
Pressure Relief Setting (psig)0-15Body MaterialAluminum
DivisionPneumatic DivisionPort Size1/4
Port TypeMale<br>NPT │ BSPPAdjustment MechanismPolypropylene Push-Pull Locking Knob
Operating Temperature+4° to +49° °CPressure Relief Setting0 to 6.9 barg
Adjustment Screw MaterialZinc Plated Steel Adjusting Screw and SpringMaximum Inlet Pressure Rating20.7 barg
