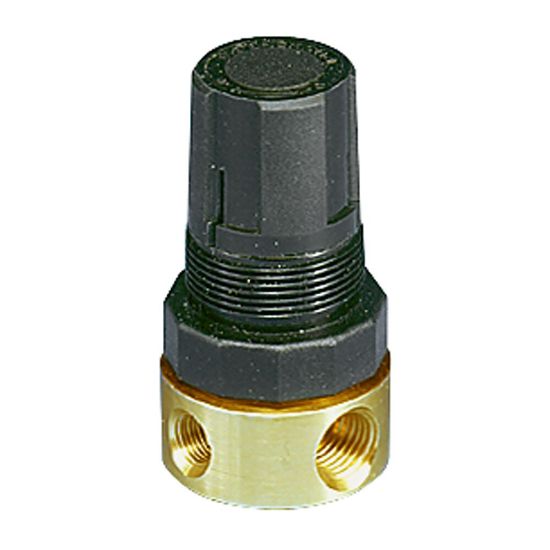

Picture of Relief Valves - 134 Series - 134-02AP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Relief Valves - 134 Series - 134-02AP

134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.
Availability:
Backordered
SKU 134-02AP
$49.59
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAAvailable AccessoriesWith panel mount nut
Pressure Relief Setting (psig)0-25DivisionPneumatic Division
Body MaterialBrassAdjustment MechanismPolypropylene Push-Pull Locking Knob
Operating Temperature+4° to +49° °CPressure Relief Setting0 to 6.9 barg
Adjustment Screw MaterialZinc Plated Steel Adjusting Screw and SpringMaximum Inlet Pressure Rating300 psig
Port SizeInlet Port 1/8" and 1/4", Outlet Port 1/4"Port Type3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP
