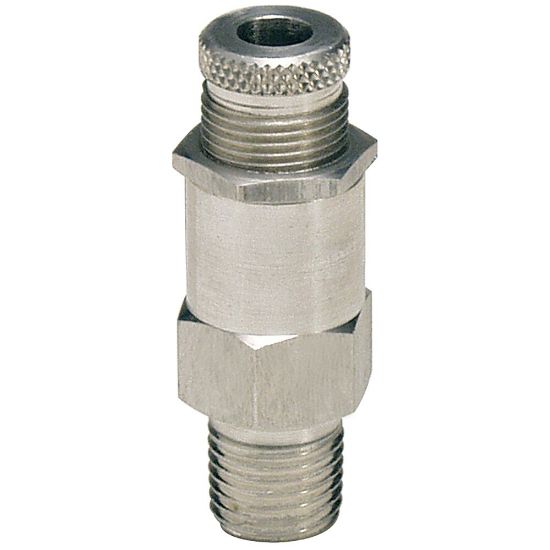

RV01A1N055 - Relief Valves - RV Series

RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU RV01A1N055

$42.84/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Relief Setting (psig)	55
Pressure Range (psig)	10-55	Seal Material	Buna
Port Type	NPT	Adjustment Screw Material	Steel Locking Nut and Spring
Pressure Relief Setting	3.85 barg	Maximum Inlet Pressure Rating	300 psig
Body Material	Aluminum	Port Size	1/4"
Adjustment Mechanism	Knurled Knob

Product resources

Literature and Reference Materials

MRO Pneumatic Airline Accessories Catalog (PDF)
Relief Valves, Installation and Service Manuals (PDF)
