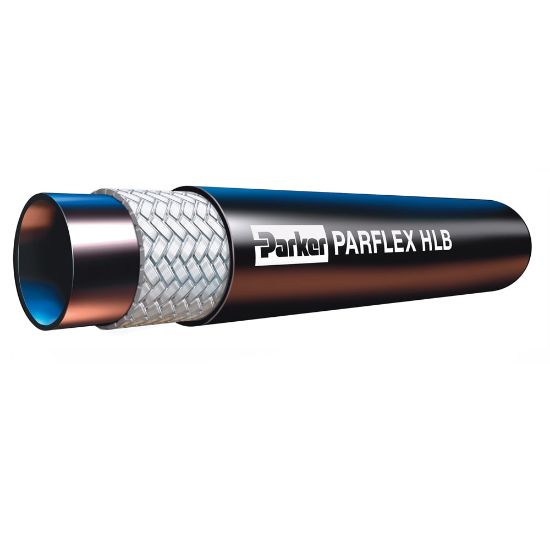

Picture of Remote Grease Hose 3000 psi - HLB - HLB03

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Remote Grease Hose 3000 psi - HLB - HLB03

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.
Availability:
Backordered
SKU HLB03
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/16
Hose Reinforcement MaterialFiberWeight0.08 kg/m
Minimum Bend Radius19 mmMinimum Operating Temperature-40 °C
Design Factor4:1Compatible FittingCY Series
Outside Diameter0.410 inchDivisionParflex Division
Cover MaterialPolyurethaneHose Inner Tube MaterialCopolyester
ApplicationTransportationSpecifications MetMSHA
Maximum Operating Pressure3000 psiMaximum Operating Temperature100 °C
Inside Diameter5 mmSize-3
MediaPetroleum Hydraulic Fluids
