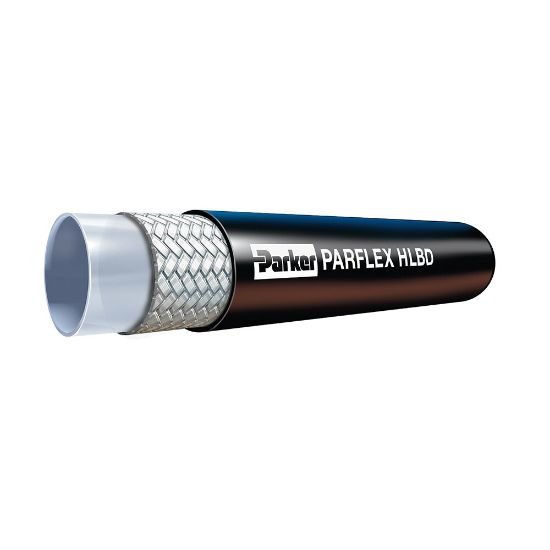

HLBD02 - Remote Grease Hose 3000 psi - HLB

Name: HLBD02 - Remote Grease Hose 3000 psi - HLB
SKU: HLBD02
Price: 1.85 USD
Availability: InStock

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.

Availability:

5687 in stock

COLUMBIA, MO	2,598
Wichita, KS	1,622
Olivette, MO	674
Kansas City, KS	512
WICHITA, KS	82
TOPEKA, KS	60
Joplin, MO	56
Springfield, MO	50
Decatur, IL	30

Partner Available:

15968 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU HLBD02

$1.85/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/8
Inside Diameter	3.2 mm	Media	Petroleum Hydraulic Fluids
Maximum Operating Temperature	100 °C	Hose Reinforcement Material	Fiber
Minimum Bend Radius	1/2 inch	Minimum Operating Temperature	-40 °F
Design Factor	4:1	Maximum Operating Pressure	207 bar
Size	-2	Compatible Fitting	CY Series
Outside Diameter	0.320 inch	Weight	0.03 lb/ft
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Specifications Met	SAE J517 and 100R7
