G01068Q - Replacement Elements - 22PD-32PD Series

The replacement elements of the Parker 22PD-32PD high pressure duplex filter series make use of high quality Microglass glasfibre filter materials.

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU G01068Q

$254.90/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Micron Rating	10 µm
For Use With	32PD Housing	Seal Material	Nitrile
Diameter	93 mm	Length	208 mm
Size	Length 1	Filter Element Type	10Q Microglass
Maximum Pressure Differential	20 bar (ISO 2941)	Filter Element Type	Disposable element
Collapse Pressure (bar)	20 bar	Pkg Qty	1
Media	10 Micron Absolute	Collapse Pressure (psi)	290 psi
Seals	NBR: Nitrile	UOM	EA
Media Type	Microglass	Efficiency βx(C) ≥ 200	10 µ
Collapse Pressure (psi)	290 psi	Seals	NBR: Nitrile
Glue Endcaps Adhesive	Epoxy	Inner Support Cylinder Material	Mild steel tin plated
Media Type	Microglass	Top Endcap Material	Glass reinforced nylon
Parker Division	Hydraulic Filter	Collapse Pressure (bar)	20 bar

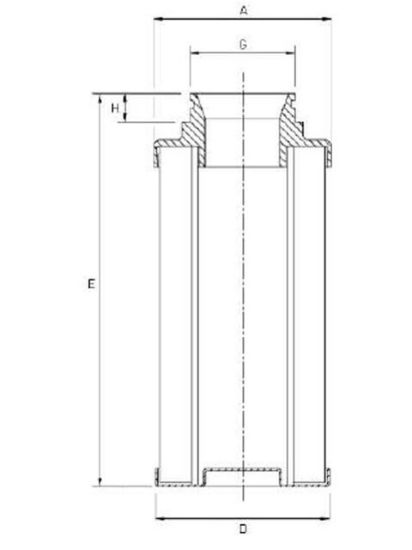

A Dimension	3.76 in (95.5 mm)	Glue Side Seam Adhesive	Epoxy
I Dimension	0.059 in (1.5 mm)	Series	ParFit
H Dimension	2.48 in (63 mm)	Media	10 Micron Absolute
Efficiency βx(C) ≥ 200	10 µ	Bottom Endcap Material	Mild steel tin plated
D Dimension	3.76 in (95.5 mm)	E Dimension	1.122 in (28.5 mm)
B Dimension	0.236 in (6 mm)	Parker Group	Filtration
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides

Product resources

Literature and Reference Materials

BROCHURE-22PD-32PD Series (PDF)
