G01281Q - Replacement Elements - 22PD-32PD Series

The replacement elements of the Parker 22PD-32PD high pressure duplex filter series make use of high quality Microglass glasfibre filter materials.

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU G01281Q

$139.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	10Q Microglass
Size	Length 1	Seal Material	Nitrile
For Use With	22PD Housing	Micron Rating	10 µm
Diameter	62 mm	Length	137 mm
Filter Element Type	Disposable element	Maximum Pressure Differential	20 bar (ISO 2941)
Efficiency βx(C) ≥ 200	10 µ	Media	10 Micron Absolute
Collapse Pressure (psi)	290 psi	Collapse Pressure (bar)	20 bar
Media Type	Microglass	UOM	EA
Seals	NBR: Nitrile	Pkg Qty	1
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Parker Group	Filtration
Media	10 Micron Absolute	Efficiency βx(C) ≥ 200	10 µ
Seals	NBR: Nitrile	Top Endcap Material	Glass reinforced nylon
Inner Support Cylinder Material	Mild steel tin plated	Glue Endcaps Adhesive	Epoxy

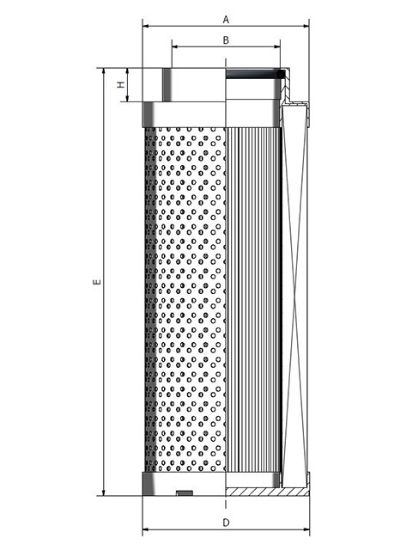

I Dimension	0.039 in (1 mm)	Media Type	Microglass
A Dimension	2.441 in (62 mm)	Series	ParFit
B Dimension	1.417 in (36 mm)	E Dimension	5.394 in (137 mm)
Collapse Pressure (psi)	290 psi	Bottom Endcap Material	Mild steel tin plated
Glue Side Seam Adhesive	Epoxy	Parker Division	Hydraulic Filter
Collapse Pressure (bar)	20 bar	D Dimension	2.441 in (62 mm)

Product resources

Literature and Reference Materials

BROCHURE-22PD-32PD Series (PDF)
