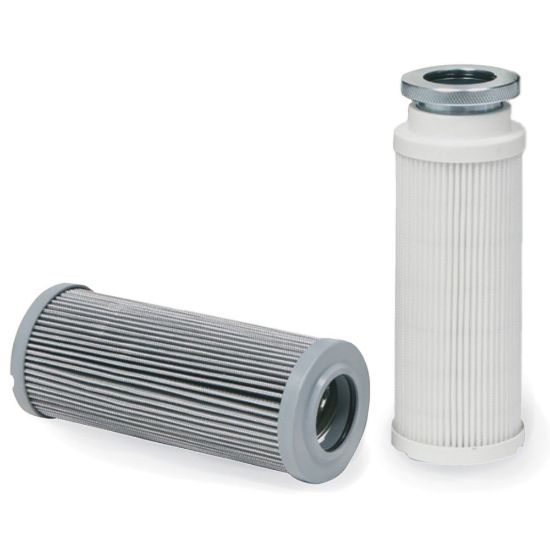

938969Q - Replacement Elements - 45M Series

The 45M-Series elements are available as Ecoglass version without inner core and as conventional Microglass version.
These elements have a Multi-layered design with the latest in filter media technology for high capacity and efficiency.

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU 938969Q

$339.99/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Vessel Size	Length 3
Length	329 mm	Micron Rating	5 µm
Diameter	80 mm	Filter Element	05Q Microglass
Options	Standard	Seal Material	Nitrile
Maximum Pressure Differential	20 bar (ISO 2941)	For Fluid Type	Mineral and vegetable oils and some synthetic oils
Industry	Industrial Manufacturing Equipment<br/>Off-Road Machinery	Operating Pressure	up to 40 bar
Filter Material	Microglass III<br/>Ecoglass III	Maximum Flow Rate	260 L/min

Product resources

Literature and Reference Materials

BROCHURE-45M Series (PDF)
