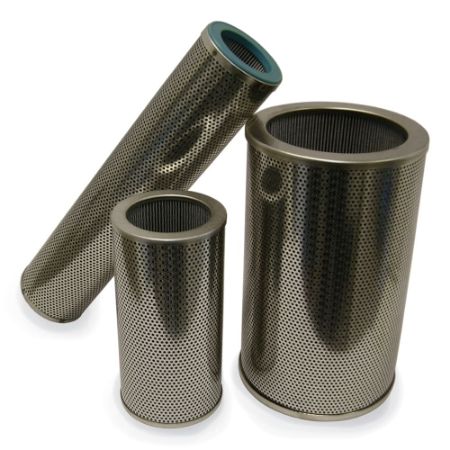

Replacement Elements - BGT Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The high quality replacement elements of the BGT filter series are available in a wide variety of sizes and with several filter materials and micron ratings.
These replacement elements ensure the quality of filtration Parker is known for.

Fluid passes through the elements in an inside-to-outside direction, collecting particles inside the filter cartridge. This eliminates reinjection of contaminant during element change. Clean fluid then returns to the reservoir.

The BGT series filters are available with Magnetic pre-filtration. The magnet column removes ferrous particles, even during times of bypass, and extends the life of the filter element.

Using genuine Parker replacement elements guarantees Parker's quality of filtration. Using after market filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Seal Material	Length	Filter Element Type	Micron Rating	Diameter	Filter Housing Series	Media Type	Pkg Qty	Seals	Efficiency βx(C) ≥ 200	Collapse Pressure (psi)	Collapse Pressure (bar)	Competitor	Inner Support Cylinder Material	Parker Group	E Dimension	Efficiency βx(C) ≥ 200	Collapse Pressure (psi)	Media Composition Detail	Glue Side Seam Adhesive	Parker Division	Media Type	D Dimension	Series	A Dimension	Top Endcap Material	Media	B Dimension	Bottom Endcap Material	Glue Endcaps Adhesive	Collapse Pressure (bar)	Seals	Efficiency βx(C) ≥ 1000	Media	Efficiency βx(C) ≥ 1000	For Fluid Type	Product Style	Maximum Pressure Differential
937728	Backordered	Backordered	POR	EA		Nitrile	289 mm	10C Cellulose	10 µm	126 mm	BGT11 (3-390)
937729	Backordered	130 in stock	$137.20/each	EA	EA	Nitrile	479 mm	10C Cellulose	10 µm	126 mm	BGT12 (3-500)	Cellulose (Paper)	1	NBR: Nitrile	10 (nominal) µ	150 psi	10.3 bar	FILTREC	Steel tin plated	Filtration	1.913 in (48.6 mm)	10 (nominal) µ	150 psi	Single layer cellulose (paper)	Epoxy	Hydraulic Filter	Cellulose (Paper)	4.961 in (126 mm)	ParFit	4.961 in (126 mm)	Steel tin plated	10 Micron Nominal	3.618 in (91.9 mm)	Steel tin plated	Epoxy	10.3 bar	NBR: Nitrile
937731	Backordered	Backordered	$299.38/each	EA		Nitrile	440 mm	10C Cellulose	10 µm	203 mm	BGT14 (4-800)
937732	Backordered	Backordered	POR	EA		Nitrile	545 mm	10Q Cellulose	10 µm	203 mm	BGT15 (4-1000)
937733	Backordered	Backordered	POR	EA		Nitrile	825 mm	10C Cellulose with inner core	10 µm	203 mm	BGT16 (4-1500)
937734	Backordered	Backordered	POR	EA		Nitrile	1090 mm	10C Cellulose	10 µm	203 mm	BGT17 (4-2000)
937738Q	Backordered	Backordered	$794.78/each	EA		Nitrile	545 mm	02Q Microglass	2 µm	203 mm	BGT15 (4-1000)
937741Q	Backordered	Backordered	$298.21/each	EA	EA	Nitrile	479 mm	02Q Microglass	2 µm	126 mm	BGT12 (3-500)	Microglass	1	NBR: Nitrile	4 µ	150 psi	10.3 bar	FINN FILTER	Steel tin plated	Filtration	1.913 in (48.6 mm)	4 µ	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Epoxy	Hydraulic Filter	Microglass	4.961 in (126 mm)	ParFit	4.961 in (126 mm)	Steel tin plated	2 Micron Absolute	3.618 in (91.9 mm)	Steel tin plated	Epoxy	10.3 bar	NBR: Nitrile	5 µ	2 Micron Absolute	5 µ
937742Q	Backordered	Backordered	$285.83/each	EA		Nitrile	289 mm	02Q Microglass	2 µm	126 mm	BGT11 (3-390)
937763Q	Backordered	Backordered	$271.93/each	EA		Nitrile	289 mm	05Q Microglass	5 µm	126 mm	BGT11 (3-390)
937764Q	Backordered	Backordered	$277.61/each	EA	EA	Nitrile	479 mm	05Q Microglass	5 µm	126 mm	BGT12 (3-500)	Microglass	1	NBR: Nitrile	5 µ	150 psi	10.3 bar	FINN FILTER	Steel tin plated	Filtration	1.913 in (48.6 mm)	5 µ	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Epoxy	Hydraulic Filter	Microglass	4.961 in (126 mm)	ParFit	4.961 in (126 mm)	Steel tin plated	5 Micron Absolute	3.618 in (91.9 mm)	Steel tin plated	Epoxy	10.3 bar	NBR: Nitrile	7 µ	5 Micron Absolute	7 µ
937767Q	Backordered	1 Limited Stock	$775.30/each	EA		Nitrile	545 mm	05Q Microglass	5 µm	203 mm	BGT15 (4-1000)
937772Q	Backordered	Backordered	$662.50/each	EA		Nitrile	1090 mm	10Q Microglass	10 µm	203 mm	BGT17 (4-2000)																														Mineral and Petroleum Based Fluids
937773Q	Backordered	Backordered	$1,038.02/each	EA		Nitrile	825 mm	10Q Microglass with inner core	10 µm	203 mm	BGT16 (4-1500)																															Conventional disposable element	10 bar (ISO 2941)
937774Q	Backordered	Backordered	$561.09/each	EA	EA	Nitrile	545 mm	10Q Microglass	10 µm	203 mm	BGT15 (4-1000)	Microglass	1	NBR: Nitrile	9 µ	150 psi	10.3 bar	ATLAS COPCO	Steel tin plated	Filtration	21.429 in (544.3 mm)	9 µ	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Epoxy	Hydraulic Filter	Microglass	0.902 in (22.9 mm)	ParFit	0.902 in (22.9 mm)	Steel tin plated	10 Micron Absolute	6.181 in (157 mm)	Steel tin plated	Epoxy	10.3 bar	NBR: Nitrile	12 µ	10 Micron Absolute	12 µ		Conventional disposable element	10 bar (ISO 2941)
937775Q	Backordered	Backordered	$517.61/each	EA		Nitrile	440 mm	10Q Microglass	10 µm	203 mm	BGT14 (4-800)																															Conventional disposable element	10 bar (ISO 2941)
937776Q	Backordered	Backordered	$425.64/each	EA		Nitrile	330 mm	10Q Microglass	10 µm	203 mm	BGT13 (4-600)																															Conventional disposable element	10
937777Q	Backordered	29 in stock	$233.78/each	EA	EA	Nitrile	479 mm	10Q Microglass	10 µm	126 mm	BGT12 (3-500)	Microglass	1	NBR: Nitrile	9 µ	150 psi	10.3 bar	FINN FILTER	Steel tin plated	Filtration	1.913 in (48.6 mm)	9 µ	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Epoxy	Hydraulic Filter	Microglass	4.961 in (126 mm)	ParFit	4.961 in (126 mm)	Steel tin plated	10 Micron Absolute	3.618 in (91.9 mm)	Steel tin plated	Epoxy	10.3 bar	NBR: Nitrile	12 µ	10 Micron Absolute	12 µ		Conventional disposable element	10 bar (ISO 2941)
937778Q	Backordered	7 in stock	$217.21/each	EA		Nitrile	289 mm	10Q Microglass	10 µm	126 mm	BGT11 (3-390)																															Conventional disposable element	10 bar (ISO 2941)
937799Q	Backordered	Backordered	$202.22/each	EA		Nitrile	289 mm	20Q Microglass	20 µm	126 mm	BGT11 (3-390)																															Conventional disposable element	10 bar (ISO 2941)
