FTAE1B20Q - Replacement Elements - FTA/FTB/FTC Series

Genuine replacement elements for Parker FTA/FTB/FTC tank top mounted return filters.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU FTAE1B20Q

$73.65/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Micron Rating	20 µm
Size	Length 1	Seal Material	Fluoroelastomer
Filter Element Type	20Q Microglass	For Use With	FTA
Length	118 mm	Diameter	45 mm
Seals	FKM: Fluorocarbon	Collapse Pressure (bar)	10.3 bar
UOM	EA	Media Type	Microglass
Efficiency βx(C) ≥ 1000	20 µ	Collapse Pressure (psi)	150 psi
Efficiency βx(C) ≥ 200	16 µ	Pkg Qty	1
Media	20 Micron Absolute	Bottom Endcap Material	Glass reinforced nylon
Media	20 Micron Absolute	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides

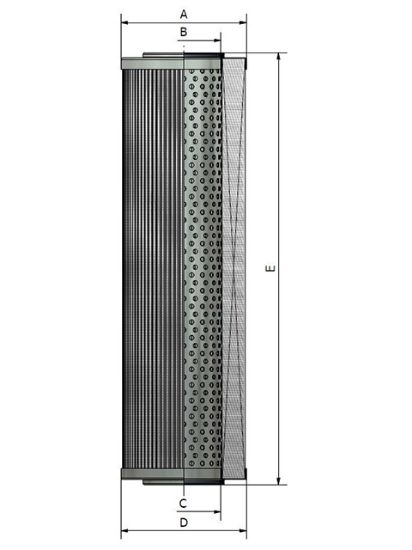

C Dimension	1.024 in (26 mm)	Inner Support Cylinder Material	Steel tin plated
Parker Group	Filtration	Efficiency βx(C) ≥ 1000	20 µ
A Dimension	1.78 in (45.2 mm)	Top Endcap Material	Glass reinforced nylon
Media Type	Microglass	E Dimension	4.661 in (118.4 mm)
Collapse Pressure (bar)	10.3 bar	Glue Endcaps Adhesive	Epoxy
B Dimension	1.024 in (26 mm)	Glue Side Seam Adhesive	Epoxy
Parker Division	Hydraulic Filter	Seals	FKM: Fluorocarbon
Collapse Pressure (psi)	150 psi	D Dimension	1.78 in (45.2 mm)
Series	ParFit	Efficiency βx(C) ≥ 200	16 µ
