HF41H10VQ - Replacement Elements - HF2/HF3/HF4

These filter elements offer contamination protection for hydraulic systems ranging in use from standard power units to complex automotive systems.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU HF41H10VQ

$173.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Length	single
Micron Rating	10 Micron Absolute	Filter Element Type	HF4 Cartridge
Options	High Collapse	Seal Material	Fluorocarbon
Product Style	Hydraulic Filter	Media Material	Multilayered microglass with epoxy coated mesh support
Collapse Pressure (psi)	2000 psi	Efficiency βx(C) ≥ 1000	12 µ
Efficiency βx(C) ≥ 200	9 µ	Media Type	Microglass
Seals	FKM: Fluorocarbon	UOM	EA
Collapse Pressure (bar)	138 bar	Media	10 Micron Absolute
Pkg Qty	1	Glue Side Seam Adhesive	Epoxy

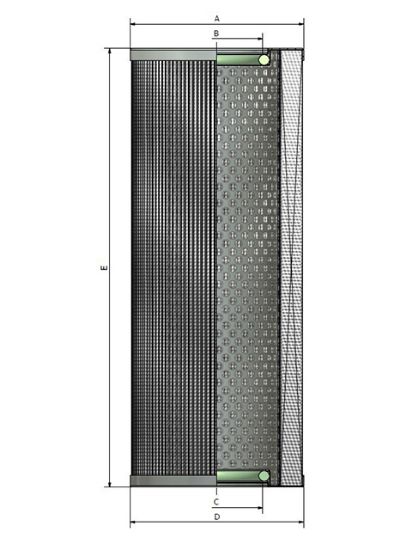

Parker Division	Hydraulic Filter	E Dimension	9.201 in (233.7 mm)
Seals	FKM: Fluorocarbon	Series	ParFit
Top Endcap Material	Black anodized aluminum	Collapse Pressure (psi)	2000 psi
D Dimension	0.051 in (1.3 mm)	B Dimension	1.618 in (41.1 mm)
Media Type	Microglass	Collapse Pressure (bar)	138 bar
Bottom Endcap Material	Black anodized aluminum	Glue Endcaps Adhesive	Epoxy
Media Composition Detail	Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid	Competitor	AIAG
Media	10 Micron Absolute	Inner Support Cylinder Material	Steel tin plated
Parker Group	Filtration	Efficiency βx(C) ≥ 200	9 µ
Efficiency βx(C) ≥ 1000	12 µ
