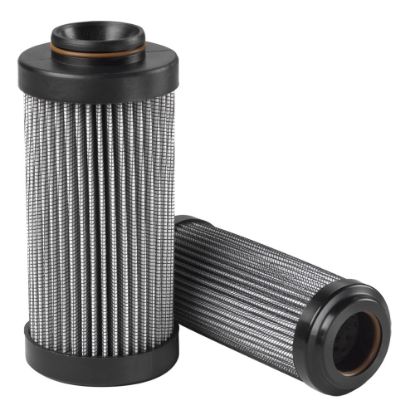

Replacement Elements - High Pressure 15P-30P-30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P-30P-30P Series is a high pressure filter designed with the latest filtration technology.
Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Seal Material | Length | Micron Rating | Compatible Series | For Fluid Type | Filter Element Type | Diameter | Cartridge Length | Pkg Qty | Seals | Media Type | Collapse Pressure (bar) | Collapse Pressure (psi) | Parker Group | Parker Division | Series | Seals | Inner Support Cylinder Material | Glue Endcaps Adhesive | Media Composition Detail | Top Endcap Material | Glue Side Seam Adhesive | Media | Media Type | Collapse Pressure (bar) | Collapse Pressure (psi) | Bottom Endcap Material | A Dimension | B Dimension | D Dimension | E Dimension | Efficiency βx(C) ≥ 200 | Efficiency βx(C) ≥ 200 | Competitor | H Dimension | Efficiency βx(C) ≥ 1000 | Media | Efficiency βx(C) ≥ 1000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 925566 | Backordered | Backordered | $99.57/each | EA | Fluorocarbon | single | 238 Wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 114.3 mm | ||||||||||||||||||||||||||||||||
| 925568 | Backordered | Backordered | $99.57/each | EA | EA | Fluorocarbon | single | 149 wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 114.3 mm | 1 | FKM: Fluorocarbon | Stainless steel mesh | 24.1 bar | 350 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated | Epoxy | Single layer stainless steel mesh | Glass reinforced nylon | Weld | 149 Micron Nominal | Stainless steel mesh | 24.1 bar | 350 psi | Glass reinforced nylon | 1.772 in (45 mm) | 1 in (25.4 mm) | 1.772 in (45 mm) | 4.5 in (114.3 mm) | ||||||||
| 925570 | Backordered | Backordered | $172.22/each | EA | Fluorocarbon | single | 74 Wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 114.3 mm | ||||||||||||||||||||||||||||||||
| 925572 | Backordered | 2 Limited Stock | $174.64/each | EA | EA | Fluorocarbon | single | 40 wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 114.3 mm | 1 | FKM: Fluorocarbon | Stainless steel mesh | 24.1 bar | 350 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated (wrapped) | Epoxy | Single layer stainless steel mesh | Glass reinforced nylon | Weld | 40 Micron Nominal | Stainless steel mesh | 24.1 bar | 350 psi | Glass reinforced nylon | 1.772 in (45 mm) | 1 in (25.4 mm) | 1.772 in (45 mm) | 4.5 in (114.3 mm) | 40 (nominal) µ | 40 (nominal) µ | ||||||
| 925574 | Backordered | 3 in stock | $224.24/each | EA | Fluorocarbon | single | 25 wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 1.77 inch | 114.3 mm | ||||||||||||||||||||||||||||||||
| 925586 | Backordered | Backordered | $214.47/each | EA | Fluorocarbon | double | 238 Wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 8.2 inch | ||||||||||||||||||||||||||||||||
| 925588 | Backordered | Backordered | POR | EA | Fluorocarbon | double | 149 wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 208.3 mm | ||||||||||||||||||||||||||||||||
| 925590 | Backordered | Backordered | $197.95/each | EA | Fluorocarbon | double | 74 Wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 1.77 inch | 208.3 mm | ||||||||||||||||||||||||||||||||
| 925592 | Backordered | 6 in stock | $203.71/each | EA | Fluorocarbon | double | 40 wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 208.3 mm | ||||||||||||||||||||||||||||||||
| 925594 | Backordered | 1 Limited Stock | $423.19/each | EA | EA | Fluorocarbon | double | 25 wiremesh | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 1.77 | 8.2 | 1 | FKM: Fluorocarbon | Stainless steel mesh | 24.1 bar | 350 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated | Epoxy | Multilayer stainless steel wire mesh | Glass reinforced nylon | Weld | 25 Micron Nominal | Stainless steel mesh | 24.1 bar | 350 psi | Glass reinforced nylon | 1.772 in (45 mm) | 1 in (25.4 mm) | 1.772 in (45 mm) | 1.114 in (28.3 mm) | 25 (nominal) µ | 25 (nominal) µ | MP FILTRI | |||||
| 925831 | Backordered | Backordered | $307.42/each | EA | EA | Fluorocarbon | double | 40 wiremesh | 30P/30PD | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 62.0 mm | 9.2 inch | 1 | FKM: Fluorocarbon | Stainless steel mesh | 24.1 bar | 350 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated | Epoxy | Single layer stainless steel mesh | Glass reinforced nylon | Weld | 40 Micron Nominal | Stainless steel mesh | 24.1 bar | 350 psi | Glass reinforced nylon | 2.441 in (62 mm) | 2.441 in (62 mm) | 9.201 in (233.7 mm) | 40 (nominal) µ | 40 (nominal) µ | 1.429 in (36.3 mm) | ||||||
| 925832 | Backordered | 1 Limited Stock | $200.13/each | EA | EA | Fluorocarbon | double | 25 wiremesh | 30P/30PD | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 2.44 | 9.2 | 1 | FKM: Fluorocarbon | Stainless steel mesh | 24.1 bar | 350 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated | Epoxy | Multilayer stainless steel wire mesh | Glass reinforced nylon | Weld | 25 Micron Nominal | Stainless steel mesh | 24.1 bar | 350 psi | Glass reinforced nylon | 2.441 in (62 mm) | 2.441 in (62 mm) | 9.201 in (233.7 mm) | 25 (nominal) µ | 25 (nominal) µ | 1.429 in (36.3 mm) | ||||||
| 925834 | Backordered | 30 in stock | $116.46/each | EA | Fluorocarbon | double | 20C Cellulose | 30P/30PD | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 2.44 inch | 233.7 mm | ||||||||||||||||||||||||||||||||
| 925835 | Backordered | 23 in stock | $147.96/each | EA | EA | Fluorocarbon | double | 10C Cellulose | 30P/30PD | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 2.44 inch | 9.2 inch | 1 | FKM: Fluorocarbon | Cellulose (Paper) | 24.1 bar | 350 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated | Epoxy | Single layer cellulose (paper) | Glass reinforced nylon | Epoxy | 10 Micron Nominal | Cellulose (Paper) | 24.1 bar | 350 psi | Glass reinforced nylon | 2.441 in (62 mm) | 2.441 in (62 mm) | 9.201 in (233.7 mm) | 10 (nominal) µ | 10 (nominal) µ | FILTREC | 1.429 in (36.3 mm) | |||||
| 927694Q | 12 in stock | 23 in stock | $215.35/each | EA | EA | Fluorocarbon | double | 20Q microglass high collapse 3000 psid | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 1.77 inch | 208.3 mm | 1 | FKM: Fluorocarbon | Microglass | 207 bar | 3000 psi | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | Steel tin plated (wrapped) | Epoxy | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Steel zinc plated | Epoxy | 20 Micron Absolute | Microglass | 207 bar | 3000 psi | Steel zinc plated | 1.772 in (45 mm) | 1 in (25.4 mm) | 1.772 in (45 mm) | 1.114 in (28.3 mm) | 16 µ | 16 µ | GFK | 20 µ | 20 Micron Absolute | 20 µ | ||
| 928213 | Backordered | 10 in stock | $247.96/each | EA | Fluorocarbon | double | 74 Wiremesh high collapse | 15P | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Cartridge | 45.0 mm | 208.3 mm | ||||||||||||||||||||||||||||||||
| 929029 | Backordered | Backordered | $226.28/each | EA | Ethylene Propylene | single | 05Q microglass high collapse 2000 psid | 30P/30PD | Skydrol/Aggressive fluids | Cartridge | 2.44 | 4.9 | ||||||||||||||||||||||||||||||||
| 929047 | Backordered | Backordered | $362.03/each | EA | Ethylene Propylene | double | 10Q microglass high collapse 3000 psid | 30P/30PD | Skydrol/Aggressive fluids | Cartridge | 2.44 inch | 233.7 mm | ||||||||||||||||||||||||||||||||
| 929048 | Backordered | Backordered | $355.08/each | EA | Ethylene Propylene | double | 02Q microglass high collapse 3000 psid | 30P/30PD | Skydrol/Aggressive fluids | Cartridge | 62.0 mm | 9.2 inch | ||||||||||||||||||||||||||||||||
| 930345 | Backordered | Backordered | POR | EA | Ethylene Propylene | single | 10C cellulose high collapse 3000 psid | 30P/30PD | Skydrol/Aggressive fluids | Cartridge | 62.0 mm | 4.9 inch |
