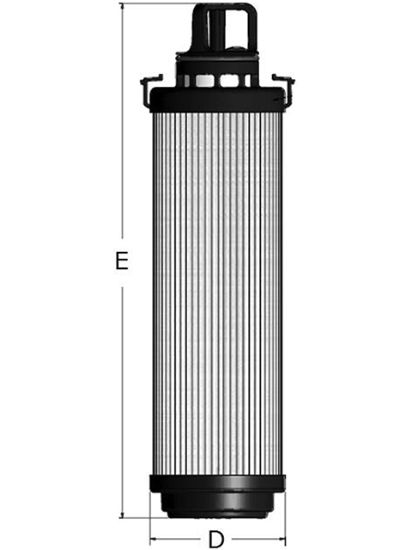

Picture of Replacement Elements - High Pressure Filter WPF Series - 941386Q

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Replacement Elements - High Pressure Filter WPF Series - 941386Q

Parker engineers have developed what soon will be the industry standard in high pressure hydraulic filtration. The 7,000 psi WPF series incorporates many advanced features designed for one reason: to improve your bottom line.
Availability:
Backordered
SKU 941386Q
$161.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACompatible SeriesWPF2
LengthsingleSeal MaterialEthylene Propylene
Micron Rating02QE microglassDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Filter Element TypeCorelessProduct TypeHydraulic Filter Element
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsEfficiency βx(C) ≥ 10005 µ
Pkg Qty1Collapse Pressure (psi)300 psi
SealsEPR: Ethylene PropyleneMedia TypeMicroglass
UOMEAMedia2 Micron Absolute
Collapse Pressure (bar)20.7 barEfficiency βx(C) ≥ 2004 µ
Collapse Pressure (bar)20.7 barGlue Side Seam AdhesivePolyurethane
Parker DivisionHydraulic FilterParker GroupFiltration
Efficiency βx(C) ≥ 10005 µD Dimension2.098 in (53.3 mm)
Top Endcap MaterialGlass reinforced nylonMedia TypeMicroglass
Efficiency βx(C) ≥ 2004 µSealsEPR: Ethylene Propylene
Bottom Endcap MaterialGlass reinforced nylonGlue Endcaps AdhesivePolyurethane
SeriesParFitE Dimension9.201 in (233.7 mm)
Media Composition DetailMultilayer fiberglass with PBT mesh on both sidesMedia2 Micron Absolute
Collapse Pressure (psi)300 psi
