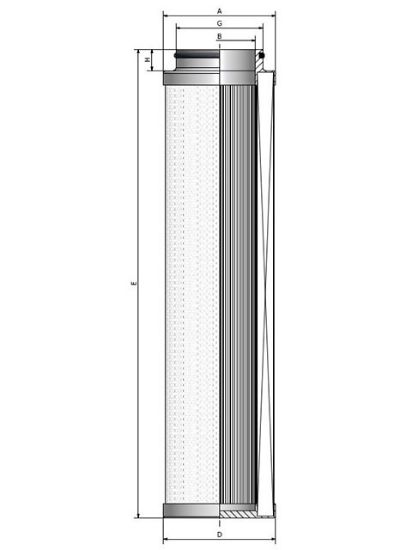

Picture of 941400Q - Replacement Elements - High Pressure Filter WPF Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

941400Q - Replacement Elements - High Pressure Filter WPF Series

Parker engineers have developed what soon will be the industry standard in high pressure hydraulic filtration. The 7,000 psi WPF series incorporates many advanced features designed for one reason: to improve your bottom line.
Availability:
7 in stock
Wichita, KS7
Partner Available:Backordered
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 941400Q
$216.64/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACompatible SeriesWPF2
Micron Rating02QH microglass high collapseSeal MaterialEthylene Propylene
LengthsingleFor Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element TypeCorelessSealsEPR: Ethylene Propylene
Pkg Qty1Collapse Pressure (bar)138 bar
UOMEAMedia TypeMicroglass
Efficiency βx(C) ≥ 2004 µEfficiency βx(C) ≥ 10005 µ
Media2 Micron AbsoluteCollapse Pressure (psi)2000 psi
Inner Support Cylinder MaterialElectro-Galvanized SteelA Dimension2.098 in (53.3 mm)
SealsEPR: Ethylene PropyleneEfficiency βx(C) ≥ 10005 µ
Media Composition DetailMultilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sidParker GroupFiltration
D Dimension2.098 in (53.3 mm)Bottom Endcap MaterialSteel zinc plated
Media TypeMicroglassCollapse Pressure (bar)138 bar
Efficiency βx(C) ≥ 2004 µGlue Endcaps AdhesiveEpoxy
Parker DivisionHydraulic FilterGlue Side Seam AdhesiveEpoxy
Media2 Micron AbsoluteE Dimension8.598 in (218.4 mm)
SeriesParFitCollapse Pressure (psi)2000 psi
Top Endcap MaterialAluminum
