Replacement Elements - Low Pressure Filter Moduflow™ Plus Series - 924455

Name: Replacement Elements - Low Pressure Filter Moduflow™ Plus Series - 924455
SKU: 924455
Price: 299.40 USD
Availability: LimitedAvailability

The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.

Availability:

1 Limited Stock

Olivette, MO

SKU 924455

$299.40

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Micron Rating	40 µm	Length	single
Media	Wire Mesh	Filter Housing Series	CF2
Seal Material	Nitrile	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Cartridge
Length	Single	Product Type	Hydraulic Filter Element
Micron Rating	40.0 MICRON	Compatible Series	Moduflow™
UOM	EA	Pkg Qty	1
Seals	NBR: Nitrile	Media Type	Stainless steel mesh
Efficiency βx(C) ≥ 200	40 (nominal) µ	Collapse Pressure (bar)	5 bar
Collapse Pressure (psi)	73 psi	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	ParFit
Seals	NBR: Nitrile	Glue Endcaps Adhesive	Epoxy
Media Composition Detail	Single layer stainless steel mesh	Top Endcap Material	Steel
Bottom Endcap Material	Steel	Glue Side Seam Adhesive	Weld
Media	40 Micron Nominal	Media Type	Stainless steel mesh
Competitor	FLEETGUARD	Outer Support Cylinder Material	Steel tin plated

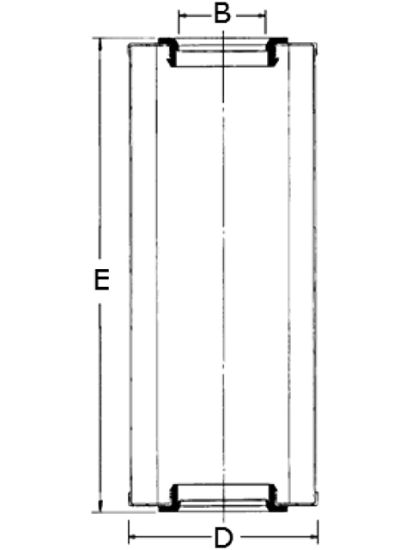

B Dimension	1.78 in (45.2 mm)	D Dimension	3.689 in (93.7 mm)
E Dimension	0.941 in (23.9 mm)	Efficiency βx(C) ≥ 200	40 (nominal) µ
Collapse Pressure (bar)	5 bar	Collapse Pressure (psi)	73 psi
