Replacement Elements - Low Pressure Filter PT Series - 936742

Name: Replacement Elements - Low Pressure Filter PT Series - 936742
SKU: 936742

The Parker PT Series Low Pressure Return Line Filters combine high efficiency Quantumfiber filtration with low cost installation. Easily removed for maintenance, this filter offers both convenience and dependability.

Availability:

Backordered

SKU 936742

$96.47

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	02Q Microglass
Length	single	Seal Material	Nitrile or Fluorocarbon
Filter Housing Series	PT4	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Cartridge
UOM	EA	Pkg Qty	1
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Single
Nominal Filter Rating	2 micron	Seals	NBR: Nitrile
Efficiency βx(C) ≥ 1000	5 µ	Efficiency βx(C) ≥ 200	4 µ
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi
Filter Media Type	Microglass III	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Bypass	25 PSI (1.7 bar)
Filter Media Code	02Q	Filter Media Type	Microglass III
Seals	NBR: Nitrile	Efficiency βx(C) ≥ 1000	5 µ
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Efficiency βx(C) ≥ 200	4 µ
Top Endcap Material	Glass reinforced nylon	Bottom Endcap Material	Glass reinforced nylon
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi

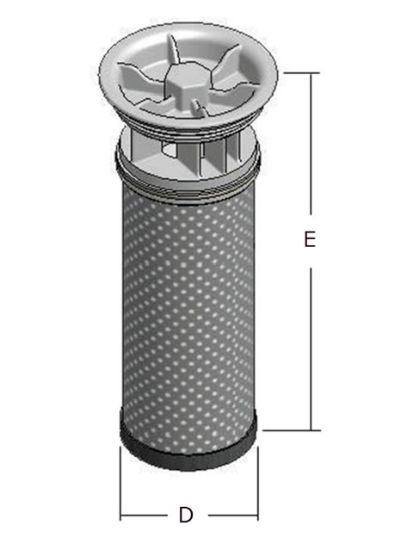

Series	PT4	D Dimension	3.09 in (78.5 mm)
E Dimension	6.34 in (161 mm)	Outer Support Cylinder Material	Mild steel tin plated
Element Type	Inside-Out	Nominal Filter Rating	2 micron
Element Weight (kg)	2.2
