941078 - Replacement Elements - Medium Pressure Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans! An environmentally friendly solution that is engineered with the latest in Microglass technology and economical.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	5 in stock

SKU 941078

$73.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Housing Series	12CS
Filter Element	WR Water Removal	Seal Material	Nitrile
Length	double	Length	Double
Product Style	Hydraulic Filter Element	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	WR water removal	Seal Material	Nitrile
Media Type	Microglass	UOM	EA
Efficiency βx(C) ≥ 200	25 (nominal) µ	Pkg Qty	1
Seals	NBR: Nitrile	Parker Group	Filtration

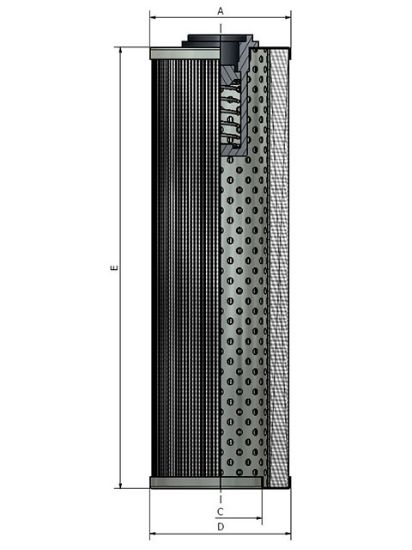

B Dimension	1.11 in (28.2 mm)	Media Composition Detail	Absorbent Polymer & fiberglass with coated mesh on both sides
Bottom Endcap Material	Glass reinforced nylon	Glue Endcaps Adhesive	Epoxy
Seals	NBR: Nitrile	E Dimension	9.13 in (231.9 mm)
Top Endcap Material	Glass reinforced nylon	Media Type	Microglass
Media	25 Micron Nominal	A Dimension	2.48 in (63 mm)
Efficiency βx(C) ≥ 200	25 (nominal) µ	Parker Division	Hydraulic Filter
Series	ParFit	Glue Side Seam Adhesive	Epoxy
