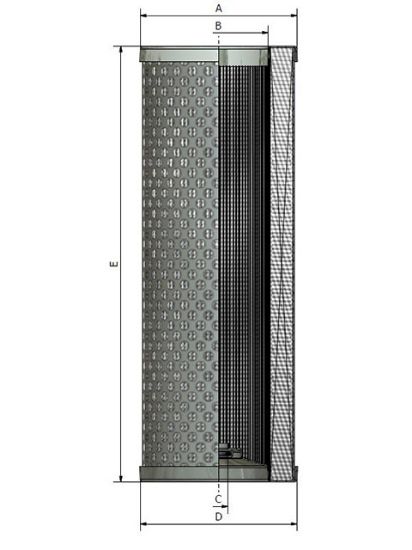

Picture of Replacement Elements - TTF Series - 937727

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Replacement Elements - TTF Series - 937727

The replacement elements of the Parker TTF Filter Series feature feauture high quality filter materials. Leif elements with reusable metal sleeve are patented and safeguard the use of genuine parts.
Availability:
Backordered
SKU 937727
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Length464 mmFilter Element10Q Cellulose
Micron Rating10 µmFilter Housing SeriesTTF8 (2-300)
DivisionHydraulic & Industrial Process Filtration Division EMEACollapse Pressure (bar)10.3 bar
UOMEAMedia TypeCellulose (Paper)
Pkg Qty1Efficiency βx(C) ≥ 20010 (nominal) µ
SealsNBR: NitrileCollapse Pressure (psi)150 psi
Media10 Micron NominalBottom Endcap MaterialSteel tin plated
Glue Endcaps AdhesiveEpoxyCollapse Pressure (bar)10.3 bar
E Dimension18.291 in (464.6 mm)SealsNBR: Nitrile
Inner Support Cylinder MaterialSteel tin platedCompetitorFILTREC
A Dimension0.626 in (15.9 mm)D Dimension0.626 in (15.9 mm)
Parker GroupFiltrationEfficiency βx(C) ≥ 20010 (nominal) µ
Glue Side Seam AdhesiveEpoxyMedia TypeCellulose (Paper)
Parker DivisionHydraulic FilterMedia Composition DetailSingle layer cellulose (paper)
Collapse Pressure (psi)150 psiTop Endcap MaterialSteel tin plated
SeriesParFitB Dimension2.839 in (72.1 mm)
Product resources

Literature and Reference Materials
