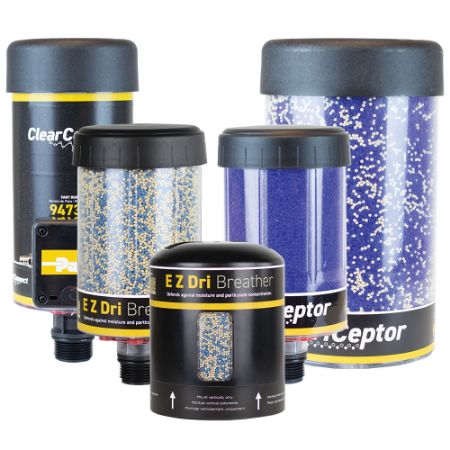

Reservoir Accessories - Desiccant Breathers
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Hydraulic and Fuel Filtration Division’s desiccant breather portfolio offers a wide selection of breather designs and desiccant types to deliver optimum performance. Reservoirs open to atmosphere are subject to an array of ambient conditions and require clean dry air on demand.

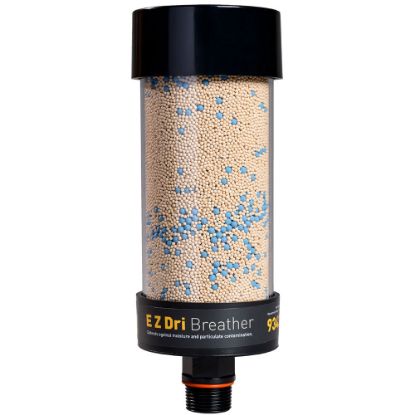

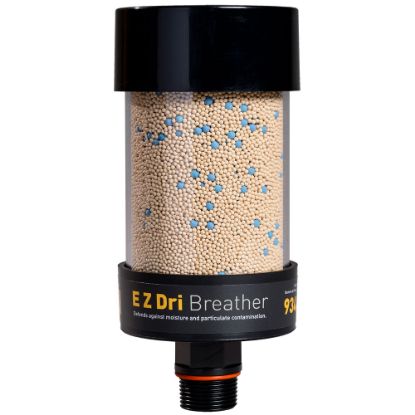

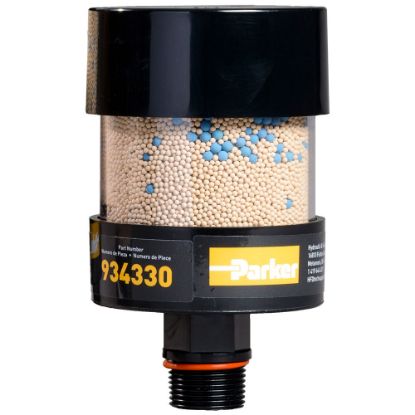

EZ Dri – Zeolite Breather
-Reduces head space Relative Humidity to as low as 5%
-Excellent temperature resistance for >100°F applications
-Color indicating beads allow visual identification for service on demand

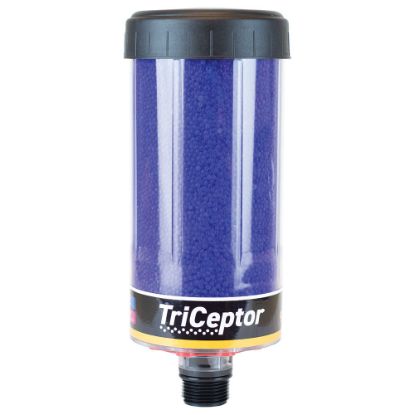

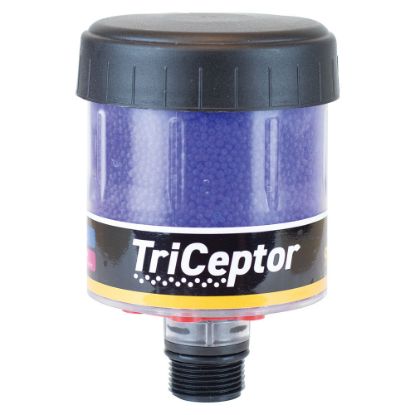

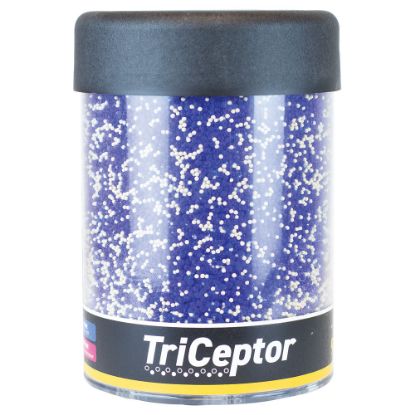

TriCeptor – Silica Gel Breather
-Reduces head space Relative Humidity to as low as 20%
-Excellent performance in high humidity (>40% RH) environments
-Color indicating desiccant allow visual identification for service on demand

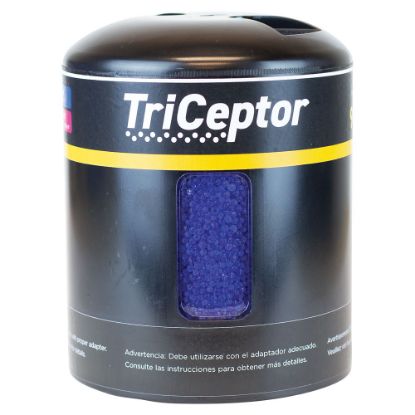

Mobile – Rugged Breather
-EZ Dri or TriCeptor options available
-Clean, dry air on demand via high flow check valves to maximize breather life
-Rugged construction to withstand the most demanding service

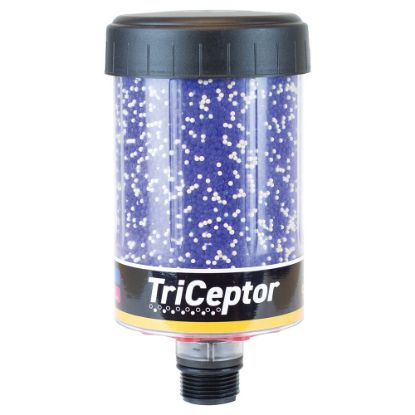

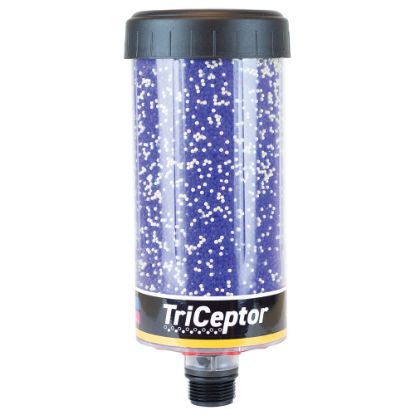

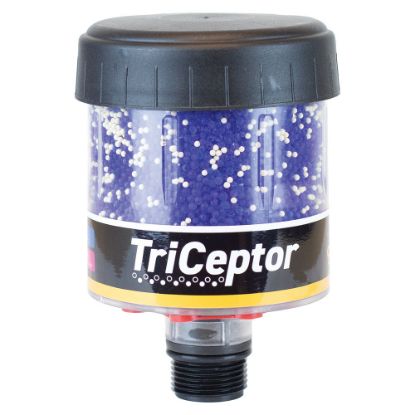

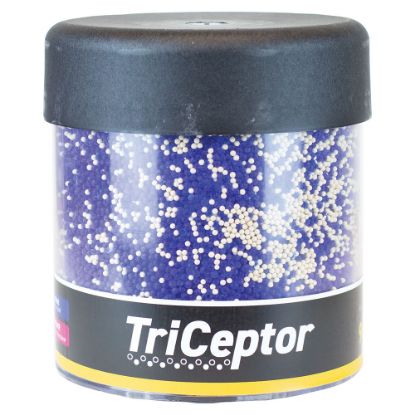

TriCeptor Plus – Mixed Desiccant Breather
-Clean, dry air on demand via high flow check valves to maximize breather life
-Mixed desiccant provides the ultimate application flexibility
-Reduces head space Relative Humidity to as low as 5%
-Color indicating desiccant allow visual identification for service on demand

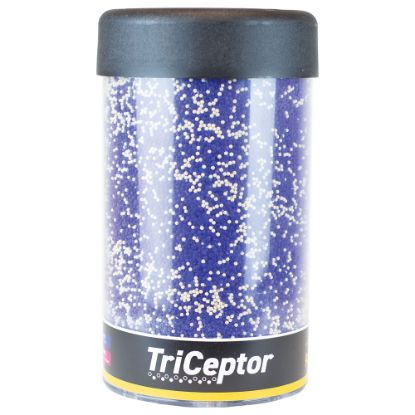

TriCeptor Extended – Mixed Desiccant Breather
-Double the capacity of a standard breather
-Clean, dry air on demand via high flow check valves to maximize breather life
-Mixed desiccant provides the ultimate application flexibility
-Reduces head space Relative Humidity to as low as 5%
-Color indicating desiccant allow visual identification for service on demand
-Integrated oil-mist coalescer protects the desiccant from hydrocarbon contaminants

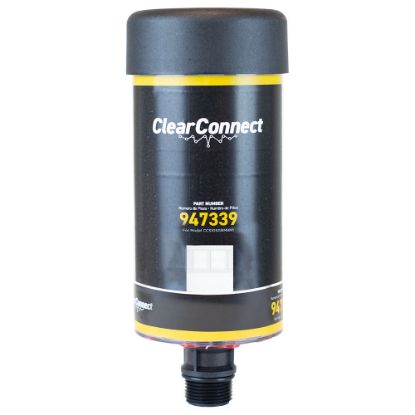

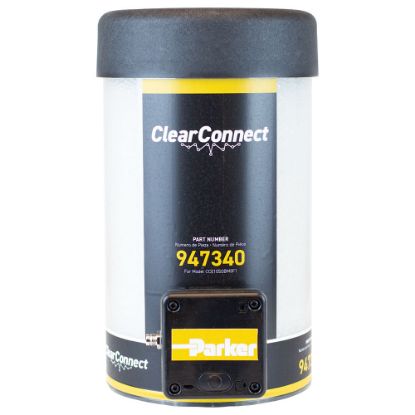

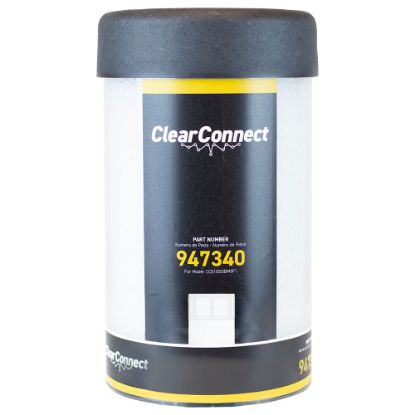

ClearConnect – Wired Relative Humidity sensor
-Relative humidity sensor provides real-time system monitoring
-Clean, dry air on demand via high flow check valves to maximize breather life
-Standard or extended sizes to meet desired service intervals
-Clear silica gel desiccant offers up to a 20% improvement in absorption capacity
Applications:
Reservoirs
Mobile Equipment
Gearboxes
Transformers
Storage Tanks
Totes
55 Gallon Drums
| Action | SKU | Availability | Partner Available | Price | UOM | Seal Material | Flow Rate | Height | Connection Type | Filter Material | Maximum Operating Temperature | Minimum Operating Temperature | Installation | Outside Diameter | Pressure Relief Valve Type | Special Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 934330 | 4 in stock | 42 in stock | $554.72/each | EA | Nitrile | 15 SCFM | 6 in (152 mm) | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Polyester, Zeolite (molecular sieve) | 200 °F | -20 °F | Screw on | 101.6 mm | Unpressurized | ||
| 934330T | 9 in stock | 84 in stock | $99.38/each | EA | Nitrile | 16 SCFM | 6 in (152 mm) | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Polyester, silica gel | 200 °F | -20 °F | Screw on | 101.6 mm | Unpressurized | ||
| 934331 | Backordered | 17 in stock | $644.58/each | EA | Nitrile | 15 SCFM | 8 in (203 mm) | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Polyester, Zeolite (molecular sieve) | 200 °F | -20 °F | Screw on | 101.6 mm | Unpressurized | ||

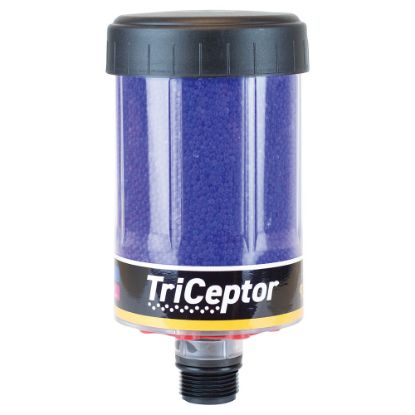

| 934331T | Backordered | 79 in stock | $1,052.13/each | EA | Nitrile | 16 SCFM | 8 in (203 mm) | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Polyester, silica gel | 200 °F | -20 °F | Screw on | 4.1 inch | Unpressurized | ||
| 934332 | 30 in stock | 12 in stock | $733.56/each | EA | Nitrile | 15 SCFM | 10 in (254 mm) | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Polyester, Zeolite (molecular sieve) | 200 °F | -20 °F | Screw on | 4.10 inch | Unpressurized | ||
| 934332T | Backordered | 100 in stock | $800.79/each | EA | Nitrile | 16 SCFM | 10 in (254 mm) | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Polyester, silica gel | 200 °F | -20 °F | Screw on | 101.6 mm | Unpressurized | ||
| 941655 | 4 in stock | 59 in stock | $297.34/each | EA | N/A | 15 SCFM | 6.34 in (158.5 mm) | 1 1/2 in - 16 UN female thread | Polyester, PTFE, Zeolite (molecular sieve) | 300 °F | -40 °F | Screw on | 5.1 inch | Unpressurized | ||
| 941655T | 2 Limited Stock | 43 in stock | $324.84/each | EA | N/A | 16 SCFM | 6.34 in (158.5 mm) | 1 1/2 in - 16 UN female thread | Polyester, PTFE, silica gel | 300 °F | -40 °F | Screw on | 5.1 inch | Unpressurized | Silicone Check Valve |
