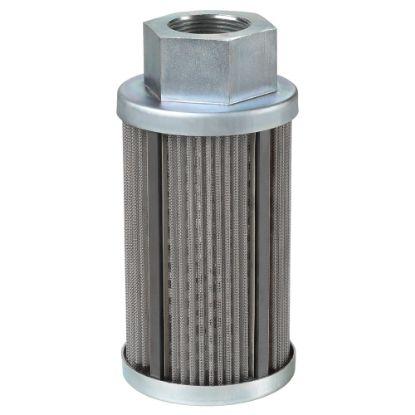

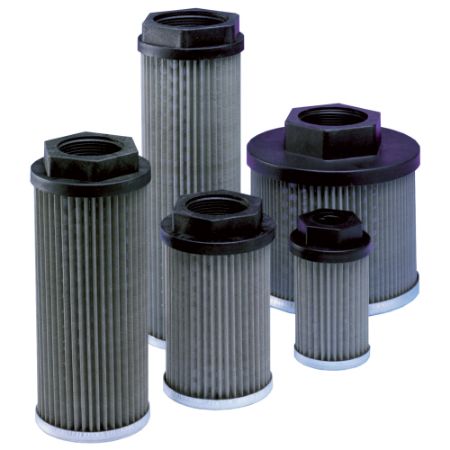

Reservoir Accessories - Suction Strainers
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Suction elements are designed to protect the pump and system from fluid contamination. These strainers are intended to be located inside the reservoir; fully submersed in the fluid. Due to cavitation limitations of pumps, Parker strainers are comprised of relatively coarse media in either 150µ or 560µ absolute stainless steel wire mesh media. For this reason, they are not used as primary protection against contamination. Also available to further protect against cavitation, Parker suction strainers are offered with integrated 3psid by-pass valve and ceramic magnets options.
*Always consult the pump manufacturer for inlet restrictions*
Read More...*Always consult the pump manufacturer for inlet restrictions*
| Action | SKU | Availability | Partner Available | Price | UOM | Type | Flow Rate (gpm) | Filter Material | Bypass Valve (bar) | Port Connection Type | Bypass Valve Pressure Rating | Length | Flow Rate | Mounting Type | Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 936547 | Backordered | Backordered | $188.12/each | EA | Magnetic Suction Strainer | 15 | Stainless Steel 560 micron | none | 1 NPT | No Bypass | 5.19 inch | 55 L/min | Threaded ID | 3.09 inch | |
| 936548 | Backordered | Backordered | $215.76/each | EA | Magnetic Suction Strainer | 25 | Stainless Steel 560 micron | none | 1-1/4 NPT | No Bypass | 7.39 inch | 95 L/min | Threaded ID | 3.53 inch | |
| 936549 | Backordered | Backordered | $201.80/each | EA | Magnetic Suction Strainer | 35 | Stainless Steel 560 micron | none | 1-1/2 NPT | No Bypass | 7.39 inch | 135 L/min | Threaded ID | 89.66 mm | |
| 936550 | Backordered | Backordered | $212.66/each | EA | Magnetic Suction Strainer | 50 | Stainless Steel 560 micron | none | 2 NPT | No Bypass | 7.39 inch | 190 L/min | Threaded ID | 89.66 mm | |
| 936551 | Backordered | Backordered | $308.23/each | EA | Magnetic Suction Strainer | 100 | Stainless Steel 560 micron | none | 3 NPT | No Bypass | 9.35 inch | 380 L/min | Threaded ID | 4.47 inch | |
| 937481 | Backordered | 1 Limited Stock | $36.02/each | EA | Suction Strainer | 5 | Stainless Steel 125 micron | 0.2 | 1/2 NPT | 3 psi | 104.77 mm | 19 L/min | Threaded ID | 1.9 inch | |
| 937482 | Backordered | 15 in stock | $28.79/each | EA | Suction Strainer | 8 | Stainless Steel 125 micron | none | 3/4 NPT | No Bypass | 3.55 inch | 30 L/min | Threaded ID | 2.67 inch | |
| 937483 | Backordered | Backordered | $40.44/each | EA | Suction Strainer | 8 | Stainless Steel 125 micron | 0.2 | 3/4 NPT | 3 psi | 90.1 mm | 30 L/min | Threaded ID | 2.67 inch | |
| 937484 | Backordered | Backordered | $35.73/each | EA | Suction Strainer | 10 | Stainless Steel 125 micron | none | 1 NPT | No Bypass | 133.35 mm | 38 L/min | Threaded ID | 67.81 mm | |
| 937485 | Backordered | Backordered | $46.95/each | EA | Suction Strainer | 10 | Stainless Steel 125 micron | 0.2 | 1 NPT | 3 psi | 5.25 inch | 38 L/min | Threaded ID | 67.81 mm | |
| 937488 | Backordered | Backordered | $48.85/each | EA | Suction Strainer | 30 | Stainless Steel 125 micron | none | 1-1/2 NPT | No Bypass | 203.45 mm | 114 L/min | Threaded ID | 88.13 mm | |
| 937489 | Backordered | 3 in stock | $86.66/each | EA | Suction Strainer | 30 | Stainless Steel 125 micron | 0.2 | 1-1/2 NPT | 3 psi | 8.01 inch | 114 L/min | Threaded ID | 88.13 mm | |
| 937490 | Backordered | 12 in stock | $56.53/each | EA | Suction Strainer | 50 | Stainless Steel 125 micron | none | 1-1/2 NPT | No Bypass | 9.85 inch | 189 L/min | Threaded ID | 101.6 mm | |
| 937491 | Backordered | 9 in stock | $69.69/each | EA | Suction Strainer | 50 | Stainless Steel 125 micron | 0.2 | 1-1/2 NPT | 3 psi | 9.85 inch | 189 L/min | Threaded ID | 4 inch | |
| 937492 | Backordered | 3 in stock | $62.45/each | EA | Suction Strainer | 50 | Stainless Steel 125 micron | none | 2 NPT | No Bypass | 9.85 inch | 189 L/min | Threaded ID | 101.6 mm | |
| 937493 | Backordered | 10 in stock | $75.58/each | EA | Suction Strainer | 50 | Stainless Steel 125 micron | 0.2 | 2 NPT | 3 psi | 9.85 inch | 189 L/min | Threaded ID | 101.6 mm | |
| 937494 | Backordered | 3 in stock | $79.77/each | EA | Suction Strainer | 75 | Stainless Steel 125 micron | none | 2-1/2 NPT | No Bypass | 10.1 inch | 284 L/min | Threaded ID | 5.17 inch | |
| 937495 | Backordered | Backordered | $90.79/each | EA | Suction Strainer | 75 | Stainless Steel 125 micron | 0.2 | 2-1/2 NPT | 3 psi | 10.1 inch | 284 L/min | Threaded ID | 5.17 inch | |
| 937496 | Backordered | Backordered | $100.83/each | EA | Suction Strainer | 100 | Stainless Steel 125 micron | none | 3 NPT | No Bypass | 292.1 mm | 378 L/min | Threaded ID | 5.17 inch | |
| 937497 | Backordered | 2 Limited Stock | $113.68/each | EA | Suction Strainer | 100 | Stainless Steel 125 micron | 0.2 | 3 NPT | 3 psi | 11.5 inch | 378 L/min | Threaded ID | 5.17 inch |
