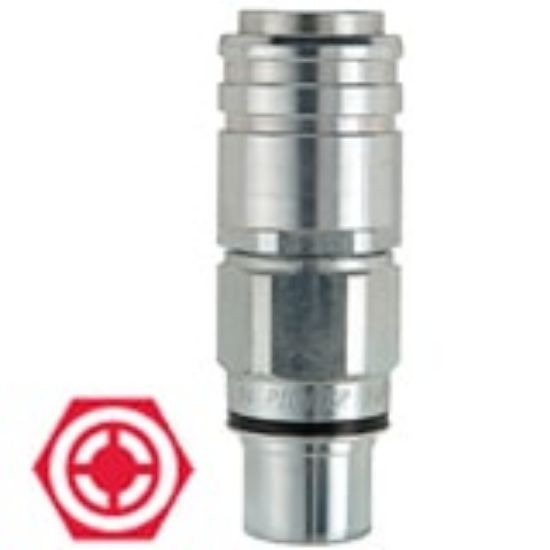

8450-16 - Rigid Mount, Pioneer Agricultural, Connect Under Pressure Quick Couplers (ISO 5675) - 8450 Series

Pioneer rigid mount, connect under pressure quick couplers are used across a spectrum of agricultural hydraulic applications where fluid lines require fast and easy connection while either or both the coupler and nipple are under pressure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3 in stock

SKU 8450-16

$167.47/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Style	Female
Maximum Operating Pressure	3000 psi	Connection Thread Size	7/8"-14 ORB inch
Coupling Half	Coupler	Body Size	1/2 inch
Flow Rate	25 Gal/min	Sleeve Type	Push-pull Connect and Disconnect (Rigid Mount)
Plating Type	Zinc with clear trivalent chromate	Media	Hydraulic
Minimum Operating Temperature	-40 °F	Body Material	Steel
Specifications Met	ISO 5675	Maximum Operating Temperature	250 °F
Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
