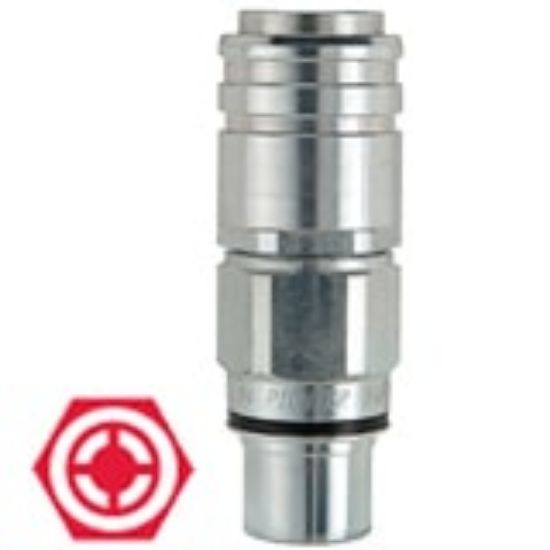

8450-16M - Rigid Mount, Pioneer Agricultural, Connect Under Pressure Quick Couplers (ISO 5675) - 8450 Series

Pioneer rigid mount, connect under pressure quick couplers are used across a spectrum of agricultural hydraulic applications where fluid lines require fast and easy connection while either or both the coupler and nipple are under pressure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 8450-16M

$162.35/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Style	Male
Specifications Met	ISO 5675	Minimum Operating Temperature	-40 °F
Body Material	Steel	Coupling Half	Coupler
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Media	Hydraulic	Plating Type	Zinc with clear trivalent chromate
Sleeve Type	Push-pull Connect and Disconnect (Rigid Mount)	Connection Thread Size	7/8"-14 ORB inch
Flow Rate	25 Gal/min	Body Size	1/2 inch
Maximum Operating Pressure	3000 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
