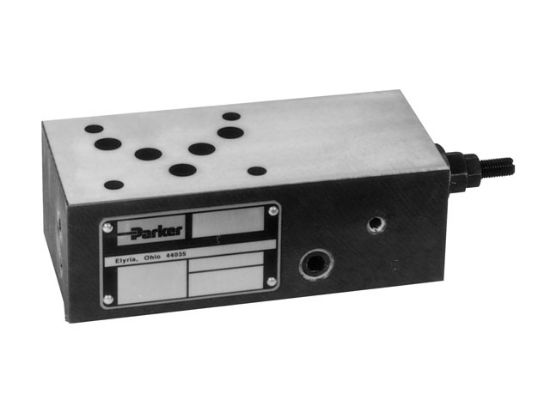

RM2PT25KV - RM Series - Relief Valve - NFPA D03 (CETOP 3, NG 6)

RM Series - Relief Valve Parker Manapak Subplate Sandwich Module

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU RM2PT25KV

$635.88/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Controlled Ports	Relief P to T
Pressure Range	150 to 3500 PSI (10 to 250 Bar)	Max Flow (at 3000 PSI)	14 GPM (54 LPM)
UOM	EA	Adjustment Type	Knob
Pkg Qty	1	Seals	Fluorocarbon
Parker Group	Hydraulic	Subplate Pattern	NFPA D03 (CETOP 3, NG 6)
Series	RM	Seals	Fluorocarbon
Max Pressure	5000 PSI (350 Bar)	Parker Division	Hydraulic Valve
Controlled Ports	Relief P to T	Adjustment Type	Knob
Pressure Range	150 to 3500 PSI (10 to 250 Bar)	Max Flow (at 3000 PSI)	14 GPM (54 LPM)

Product resources

Sandwich Valves (PDF)
