RM6PT25SV

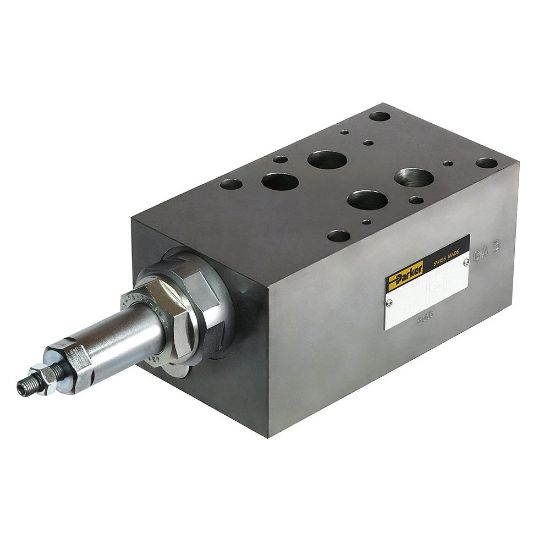

Parker RM6PT25SV | Relief Valve | Port Connection NG25/CETOP 08 | Pressure Control Range 10 to 250 Bar | Function Pressure Reliefed In P, Unloading To Port T

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU RM6PT25SV

$1,308.72/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Parker Manapak pilot operated pressure relief valves series RM ensure a long service life due to valve bodies manufactured from steel. The sandwich design enables an easy configuration of stack systems. Depending on type, pressure limiting can be achieved in ports P, A or B with unloading to port T. RM valves may only be mounted in the defined mounting position.

Features:

Valve bodies are made of steel - extra strength and durability
Internal hardened steel components - provide longer service life
Wide pressure range - makes selection easy
Short delivery time for many variations - no warehousing necessary
The pressure can be set by hexagon socket screw or cylinder lock
Piloting results in a flat p/Q performance curve
The orifices located in the main spool limit the pilot oil flow

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Port Connection	NG25/CETOP 08
Function	Pressure Reliefed In P, Unloading To Port T	Parker Division	Mobile Hydraulic System
Pressure Adjustment Control Type	Hexagon Socket	Parker Group	Hydraulic
Pressure Control Range	10 to 250 Bar	Version	P-T
