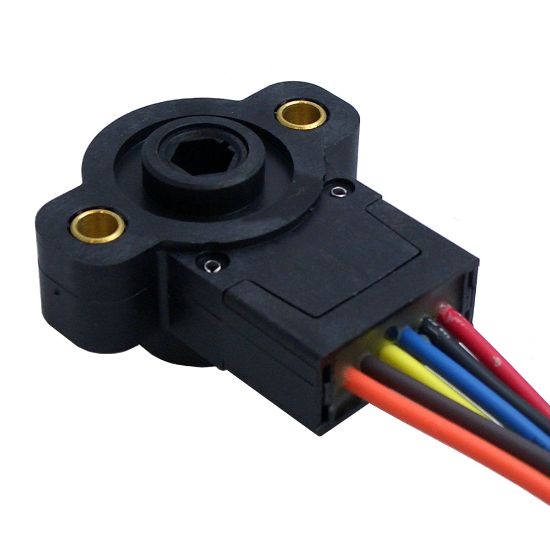

141453ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU 141453ECD

$211.85/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Electrical Output Range	100°
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	125 °C
Sensor Type	Rotation	Model Number	RS70
Electrical Connection	DTM04	Mounting Hole Diameter	5.3 mm
Ingress Protection Rating	66	Signal Output	0.5 to 4.5 VDC
Drive Axis Type	Hex Driver	Operating Current	24 mA max.
Maximum Output Error	3 %	Maximum Travel Angle	180 °
Power Supply Voltage	5 VDC	Output Current Rating	1 mA (each output)
Return Type	Spring CCW	Number of Outputs	2 redundant
Industry	Construction	Hysteresis	1%
