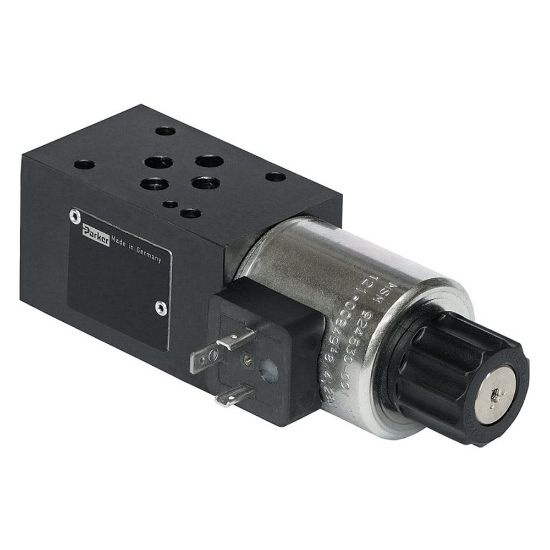

RPDM2PT25XV

Parker RPDM2PT25XV | Cartridge Valve | Function Pressure Relieved From P To T | Pressure Control Range 250 Bar | Solenoid Option 16 V / 1.3 A

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU RPDM2PT25XV

$2,881.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Direct operated proportional pressure relief valves of the series RPDM ensure fast response times and a very low pressure drop for efficient operation. They are typically used as remote control valves for flow rates below 3 l/min. The valves complete Parker's wide pilot control range for DIN cartridge valves. By this modular system, many pressure functions are documented.

Features:

Fast response time - optimized process speed
Low pressure drop - resulting in low energy losses in operation
Very low pressure adjustment of pmin - predestined as remote control valve for cartridge valve combinations
4 pressure stagesfrom 105 to 350 bar - enables fine adjustment
2 pressure ports, A and P
MTTFD value 150 years - ensures long service life
Short delivery time for most versions - no warehousing necessary
Flow rate maximum 5 l/min

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Pressure Relieved From P To T
Pressure Control Range	250 Bar	Solenoid Option	16 V / 1.3 A
Parker Division	Hydraulic Cartridge System	Parker Group	Hydraulic
