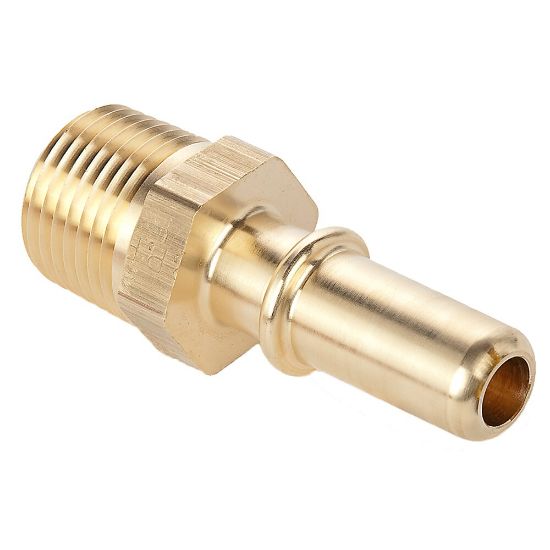

68ALS-6-4 - SAE J2044 Push-to-Connect Fittings, Safe Lock

Parker's SAE J2044 push-to-connect design reduces hose assembly fabrication time and the exclusive locking mechanism minimizes leaks and installation failures.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	46 in stock

SKU 68ALS-6-4

$22.80/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	1/4"
Connection 1 Type	Male SAE J2044	Connection 2 Type	NPTF
Shape	Straight	Product Style	SAE J2044 to Pipe
Connection Size	3/8"	Connection 2 Hose I.D. (inch)	n/a
Maximum Operating Pressure	72 psi	Body Material	Brass
Seal Material	Fluorocarbon, Fluorosilicone	Minimum Operating Temperature	-40 °F
Media	Coolant, Fuel	Specifications Met	SAE J2044
Maximum Operating Temperature	239 °F

Product resources

Literature and Reference Materials

Transportation Products Quick Reference Guide - Trans-QRG (PDF)
