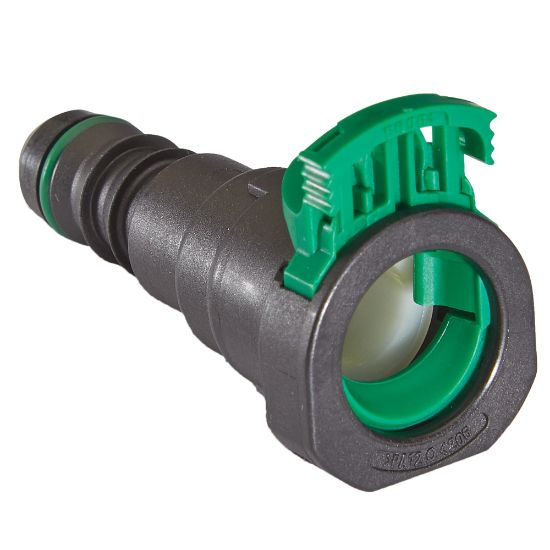

Picture of SAE J2044 Push-to-Connect Fittings, Safe Lock - A614M53 08 02

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SAE J2044 Push-to-Connect Fittings, Safe Lock - A614M53 08 02

Parker's SAE J2044 push-to-connect design reduces hose assembly fabrication time and the exclusive locking mechanism minimizes leaks and installation failures.
Availability:
879 in stock
Kansas City, KS837
Kansas City, KS42
SKU A614M53 08 02
$6.58
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 TypeFemale SAE J2044
Connection 2 TypeBarbShapeStraight
Connection Size3/8"Product StyleSAE J2044 to Barb
Connection 2 Hose I.D. (inch)3/8" (I.D.)DivisionFluid System Connectors Division
Seal MaterialFluorocarbon, FluorosiliconeMaximum Operating Temperature239 °F
ApplicationFuel supply, Vapor emission, cooling/heatingBody MaterialComposite
Maximum Operating Pressure5 barMediaCoolant, Fuel
Specifications MetSAE J2044Minimum Operating Temperature-40 °F
Product resources

Literature and Reference Materials
