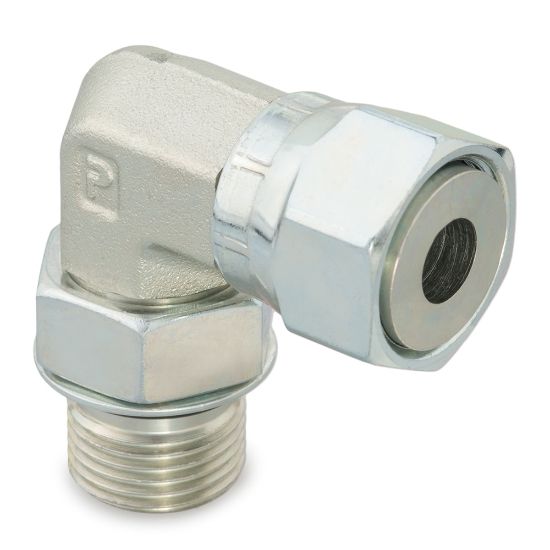

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 AOEL6-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 AOEL6-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
SKU 10 AOEL6-S
$35.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelMaximum Dynamic Pressure6000 psi
Dimensional Weight0.12336555755395684 lbO-Ring Material90 Durometer Nitrile
Specifications MetSAE J1453Shape90° Elbow
Connection TypeTube to SAE Straight ThreadConnection 1 TypeFemale O-Ring Face Seal Swivel
Connection 2 TypeMale SAE-ORBConnection 3 Typena
Connection 4 TypenaConnection 2 Thread Size7/8-14 inch
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 2 Tube Outside DiameternaConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside Diameterna
