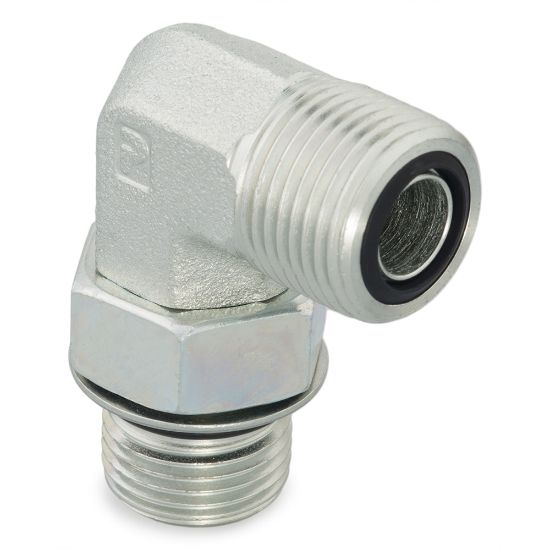

10 C5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: 10 C5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 C5OLO-S
Price: 13.69 USD
Availability: LimitedAvailability

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

8 in stock

Springfield, MO	2
Joplin, MO	2
WICHITA, KS	1
COLUMBIA, MO	1
Kansas City, KS	1
Peoria, IL	1

Partner Available:

442 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10 C5OLO-S

$13.69/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Dynamic Pressure	6000 psi	Dimensional Weight	0.10280463129496402 lb
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Shape	90° Elbow	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Type	Male SAE-ORB
Connection 3 Type	na	Connection 4 Type	na
Connection 2 Thread Size	7/8-14 inch	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
