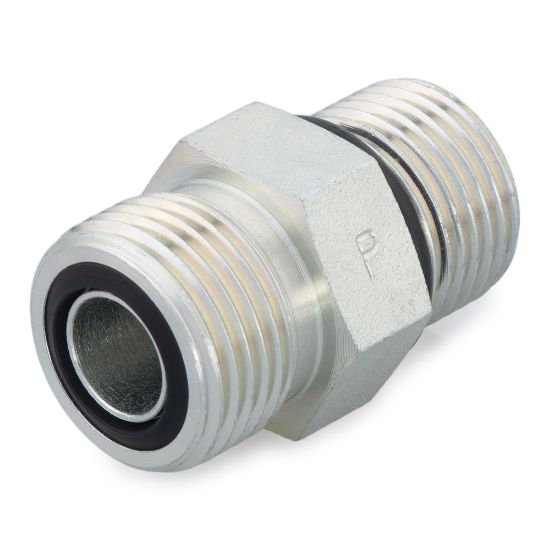

Picture of 10 F5OLO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10 F5OLO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
Estimated Lead Time: 50 days
Partner Available:Backordered
SKU 10 F5OLO-S FKM
$9.93/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialSteel
Connection TypeTube to SAE Straight ThreadSpecifications MetSAE J1453
Maximum Dynamic Pressure6000 psiConnection 4 Tube Outside Diameterna
ShapeStraightConnection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 2 Tube Outside DiameternaConnection 3 Tube Outside Diameterna
O-Ring Material90 Durometer FluorocarbonConnection 1 TypeMale O-Ring Face Seal
Connection 2 TypeMale SAE-ORBConnection 3 Typena
Connection 4 TypenaDimensional Weight0.04112185251798561 lb
