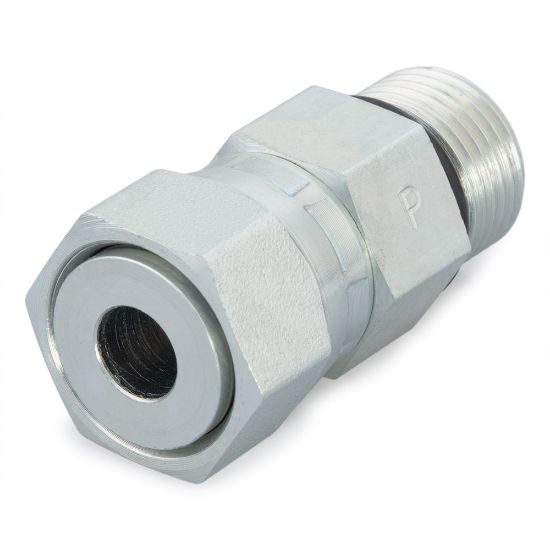

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 F65OL-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 F65OL-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
5 in stock
WICHITA, KS2
TOPEKA, KS2
Joplin, MO1
SKU 10 F65OL-S
$33.49
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialSteel
Connection TypeO-ring Face SealSpecifications MetSAE J1453
DivisionTube Fittings DivisionMaximum Dynamic Pressure6000 psi
Connection 4 Tube Outside DiameternaShapeStraight
Connection 2 Thread Size7/8-14 inchConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter14, 15, 16 mmConnection 2 Tube Outside Diameterna
Connection 3 Tube Outside DiameternaO-Ring Material90 Durometer Nitrile
Connection 1 TypeFemale O-Ring Face Seal SwivelConnection 2 TypeMale SAE-ORB
Connection 3 TypenaConnection 4 Typena
Dimensional Weight0.12464028776978417 lb
