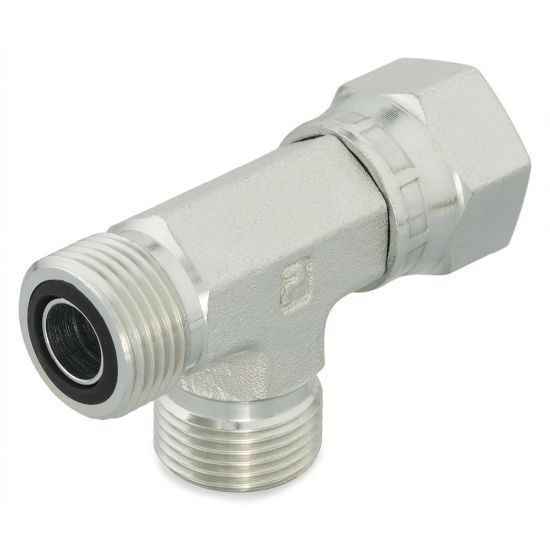

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 R6LO-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 R6LO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
9 in stock
WICHITA, KS2
Springfield, MO2
Joplin, MO2
COLUMBIA, MO1
Kansas City, KS1
Peoria, IL1
SKU 10 R6LO-S
$41.63
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelMaximum Dynamic Pressure6000 psi
O-Ring Material90 Durometer NitrileSpecifications MetSAE J1453
Connection 1 TypeMale O-Ring Face SealConnection 4 Typena
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter5/8 inchConnection 4 Tube Outside Diameterna
Connection 2 Tube Outside Diameter14, 15, 16 mmConnection 2 TypeFemale O-Ring Face Seal Swivel
ShapeTeeConnection 3 Tube Outside Diameter5/8 inch
Connection 3 TypeMale O-Ring Face SealConnection TypeBranch Tee
Dimensional Weight0.1370728417266187 lb
