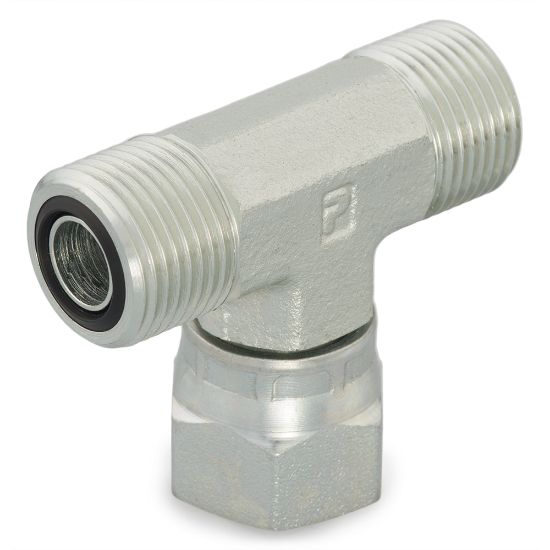

10 S6LO-S ZJ - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 10 S6LO-S ZJ

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	6000 psi
Body Material	XTR	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 4 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Type	Male O-Ring Face Seal	Shape	Tee
Connection Type	Branch Tee	Connection 3 Type	Female O-Ring Face Seal Swivel
Connection 3 Tube Outside Diameter	14, 15, 16 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
