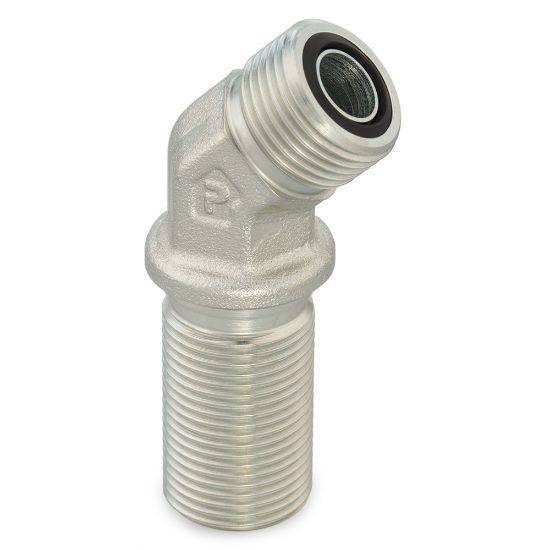

4WNMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	Backordered

SKU 4WNMLOS

$50.59/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J1453
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Type	Male O-Ring Face Seal
Body Material	Steel	Connection 4 Type	na
Connection 1 Tube Outside Diameter	6 mm	Shape	45° Elbow
Connection 4 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection Type	O-ring Face Seal	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	1/4 inch	Maximum Dynamic Pressure	9200 psi
Connection 3 Type	na	Connection 2 Type	Male O-Ring Face Seal Bulkhead

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
