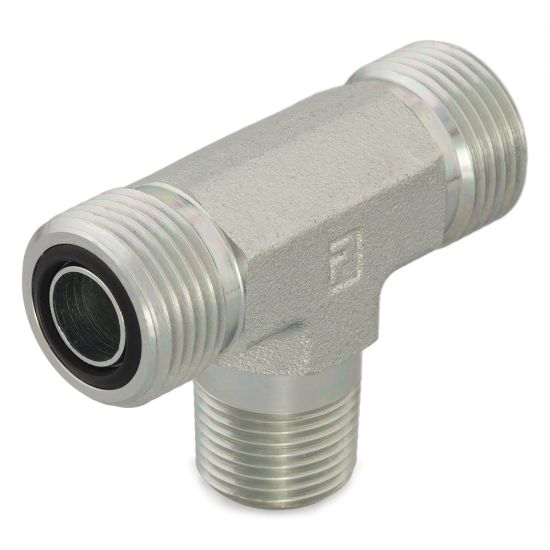

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8-8-8 SLO-S

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8-8-8 SLO-S
SKU: 8-8-8 SLO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU 8-8-8 SLO-S

$59.06

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Body Material	Steel	Dimensional Weight	0.07742805755395683 lb
Maximum Dynamic Pressure	6000 psi	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	1/2 inch
Connection 2 Type	Male O-Ring Face Seal	Shape	Tee
Connection 3 Type	Male NPT/NPTF	Connection 1 Tube Outside Diameter	12 mm
Connection Type	NPTF Branch Tee
